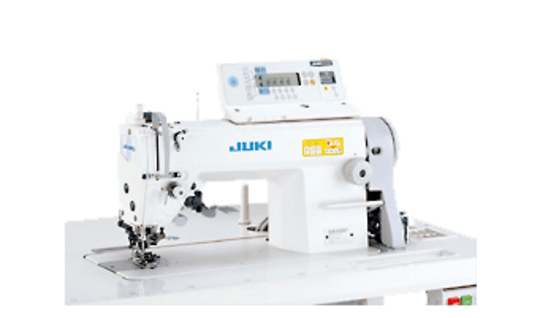

Juki DLM-5200N 1-needle, Lockstitch Machine with Vertical Edge Trimmer


Call 1-800-487-7397 for details.


1-needle, Lockstitch Machine with Vertical Edge Trimmer

The highly efficient lockstitch machine which assures the consistant quality of finished seams with a sharp knife capable of cutting various types of material.

  • The knife is sharp enough to cut any type of mamaterial. The one-touch utility knife lever enhances the comfort of operation.
  • Beautifully finished lockstitched seams.
  • The thread take-up, feed mechanism, and thread path have been improved so as to respond to material changes.
  • A consistent, beautiful seam finish is therefore attained.
  • The knife is so sharp that it can cut any type of material.
  • The knife is designed so that the angle can be changed as desired, allowing the knife to be easily applied to any type of material.
  • During operation, the type of stitching can be easily changed between lockstitch alone and lockstitch with knife.
  • The knife can be attache by simply pressing the presser plate on the machine arm. The knife is removed also by the simple operation of the knob. Thus the type of stitching, such as with or without knife, can be changed with ease.
  • DLM-5200ND
  • The maximum stitch length for the DLM- 5200N has been increased to 5mm.
  • The stitch length can be adjusted using the dial.
  • The exclusive arm-shaped machine head makes the material easier to handle.
  • The arm shape of the machine head has been adopted to enhance ease of operation.
  • The operating noise and vibration of this model are far less than its predecessors.
  • The operating environment has been greatly improved to allow the operator to work comfortably with this machine.
  • This model is designed as the optimum for high-speed sewing.
  • This model is made of special alloy steel, and a feed mechanism and system have been incorporated to make the machine the optimum for high-speed operation. As a result, this model demonstrates a consistent sewing performance during high-speed operation.
Model name DLM-5400N-7
Max. sewing speed 4,500sti/min
Max. stitch length 4mm
Presser foot By knee: 10mm
Needle DB×1 (#14) #9~#18, 134 (Nm90)
Max. thickness of the
material to be cut
4mm
Model name DLM-5200N
Max. sewing speed 4,500sti/min
Max. stitch length 5mm
Presser foot By knee: 10mm
Needle DB×1 (#14), 134 (Nm90)
