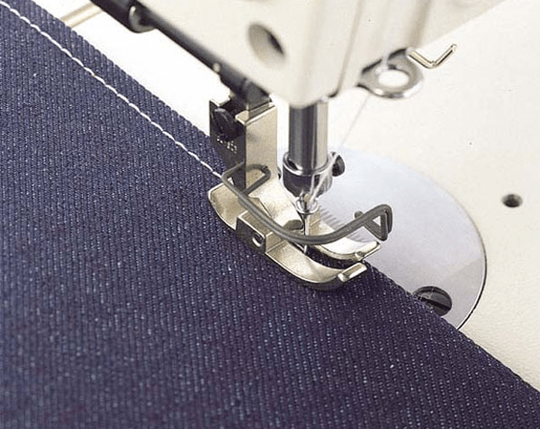

Juki DLN-5410N-7 1-needle, Needle-feed, Lockstitch Machine


1-needle, Needle-feed, Lockstitch Machine

The machine is a needle-feed type, categorized under the DDL-9000 series, that has been highly evaluated as the top-ofthe-line lockstitch machine with a thread trimmer.

The machine produces seams with accurate stitch length and prevents slippage of the upper fabric. The machine ensures beautiful seam quality free from stitch gathering, even when a hard-to-feed material is used.

  • Sure Thread trimming mechanism, the moving knife has been designed so that it can be easily replaced, thus facilitating machine maintenance.
  • Sewing mechanism that demonstrates outstanding responsiveness to materials to be sewn. The machine head has been redesigned to improve the performance of each component thanks to the machine's low tension sewing capability and the adjustment function for the needle feed amount, uneven material feeding and puckering rarely occur, thus enhancing the machine's ability to respond to any change in the material to be sewn. The optimally balanced design of the machine head and the stronger frame structure significantly reduce machine vibration and noise while the machine is being operated.
  • Higher lift of the presser foot: This machine is equipped with various devices that reduce the operator's fatigue and allow the operator to easily operate the machine. These devices include the following: The foot pedal needs only light pressure to be operated. The presser foot can be lifted as high as 13mm. The shape of the machine arm has been designed to allow the operator to handle any material with ease.
  • Durability and reliability of the machine are improved: It is designed to reinforce the feed components, lubrication components, and frame, and to seal hermetically the needle bar frame. As a result, durability and reliability of the machine are improved and economical efficiency will be remarkably enhanced.
Model name DLN-5410N-7, 5410N DLN-5410NH-7, 5410NH DLN-5410NJ-7 DLN-5410NJ-7
Application Light- to medium-weight Medium- to heavy-weight Jeans Heavy-weight
(long stitch length type)
Max. sewing speed 5,000sti/min 4,000sti/min 3,000sti/min
Max. stitch length 4mm 4.5mm 6mm
Presser foot By knee: 13mm
Needle DB×1 (#14), 134 (Nm90) DB×1 (#21), 134 (Nm130) DB×1 (#21), 134 (Nm130)
