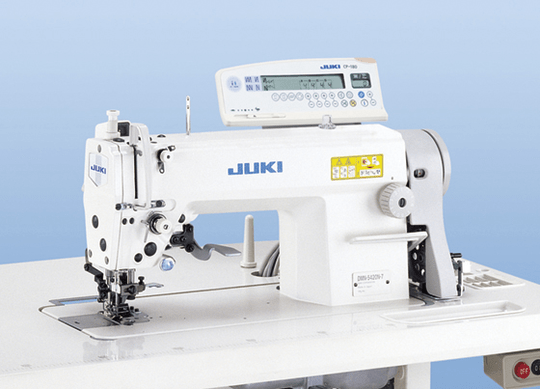

Juki DMN-5420N-7 1-needle, Needle-feed, Lockstitch Machine with Vertical Edge Trimmer


Call 1-800-487-7397 for details.


1-needle, Needle-feed, Lockstitch Machine with Vertical Edge Trimmer

The machine is a needle-feed type. The knife is sharp enough to cut any type of material.

  • The knife is sharp enough to cut any type of mamaterial. The one-touch utility knife lever enhances the comfort of operation.
  • The stitch quality is consistent even during high-speed operation.
  • Capable of high-speed sewing, it can also flexibly respond to various applications, thus leading to higher productivity.
  • The knife is sharp enough to cut any type of material regardless of its thickness or toughness, including heavy-weight material, elastic material and brushing material.
  • The one-touch utility knife lever enhances the comfort of operation and has been plasted so as to prevent rust. There is no need to worry about the material becoming soiled with rust.
  • Sure thread trimming mechanism: The thread trimmer is designed to cut various threads of different thicknesses, so the range of the applicable thread thickness number has been widened. The thread trimmer can therefore cut even a thick thread with ease.
  • Adjustment of the position of the cloth trimming knife: The cloth trimming knife has been designed so that it can move as much as 5.5mm toward you from the center of the needle.
Model name DMN-5420N-7
Max. sewing speed 5,000sti/min
Max. stitch length 5mm
Presser foot By knee: 10mm
Needle DB×1 (#14) #9~#18, 134 (Nm90)
Max. thickness of the
material to be cut
4mm
