The Workhorse......

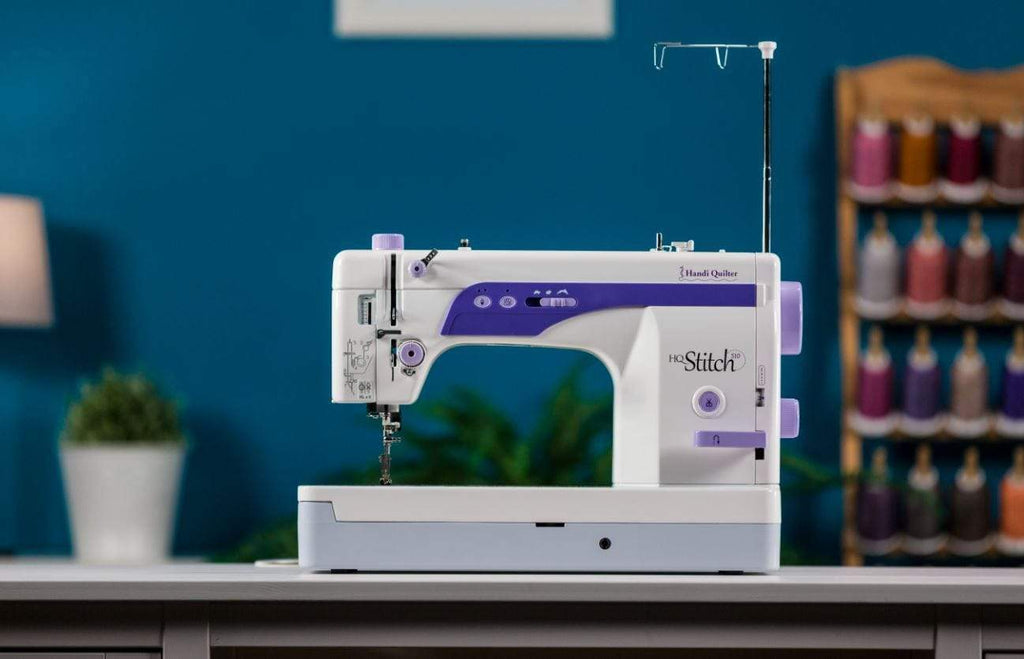

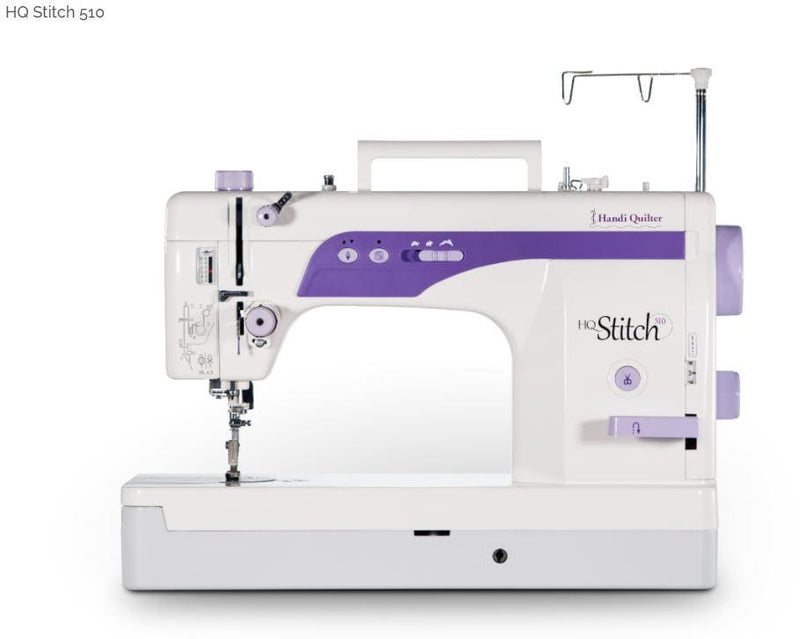

The HQ Stitch 510 is a must-have for every serious quilter. This powerful, high-speed straight stitch machine boasts a nearly 9″ x 6″ workspace, stitching speeds up to 1,600 stitches-per-minute (SPM), an automatic thread cutter, an easy needle threader, and an ergonomic knee presser-foot lift.
Included Accessories
Presser Foot, Hemmer Foot, Knee Lifter, Accessory Box, Dust Cover, Oil and Tools
Optional Accessories
1/4" Seam Foot, Convertible Free-motion Quilting Feet Set, Even-Feed Foot, Darning Foot and Plate, Extension Table, HLx5 Needles
Machine Comparison Chart
|
HQ Stitch 210 |
HQ Stitch 510 |
HQ Stitch 710 |
|
|---|---|---|---|
| Maximum Stitch Width | 5 mm | N/A | 9 mm |
| Maximum Stitch Length | 4 mm | 6 mm | 5 mm |
| # of Stitches | 20 | 1 | 170 |
| Alphabet Stitches | No | N/A | Yes |
| Elongate Stitches | No | N/A | Yes |
| Mirror Designs | No | N/A | Yes |
| Pattern Combinations | No | N/A | Yes |
| Stitch Selection | Easy-navigation Buttons | N/A | Direct Selection Buttons |
| Speed | 650 SPM | 1,600 SPM | 1,000 SPM |
| Free Arm | Yes | No | Yes |
| Drop Feed | Yes | Optional Cover | Yes |
| Needle Positions | 11 | 1 | 91 |
| Needle Up/Down | Memorized | Memorized | Memorized |
| Needle Threader | Built-in | Built-in | Built-in |
| Thread Cutter | Manual | Electronic | Electronic |
| # of Buttonholes | 2 One-Step Buttonholes | N/A | 10 One-Step Buttonholes |
| Start/Stop Button | Yes | No | Yes |
| Locking Stitch Button | Yes | No | Yes |
| Easy Reverse Button | Yes | Yes | Yes |
| Lighting | Needle-area | Needle-area | 5 ultra bright LED lamps for shadow-free sewing |
| Display | LED Screen with easy navigation keys | None | High resolution LCD touchscreen |
| Programmable Features | No | N/A | Yes |
| Twin Needle Guard | No | No | Yes |
| Straight-Stitch Needle Plate | Optional Accessory | N/A | Yes |
| Knee Lift | No | Yes | Yes |
| Machine Size (W x H x D) |
13.9″ x 10″ x 6.5″ |
19.6″ x 12.7″ x 7″ |
20.4″ x 12.4″ x 9.1″ |
| Machine Weight | 12 lbs | 32 lbs | 26.5 lbs |
| Workspace (W x H) | 5.1″ x 4″ | 9″ x 5.5″ | 11″ x 4.7″ |
| Foot Pressure Adjustment | No | Yes | Yes |
| Extra High Pressure Foot Lift | No | No | Yes |
| Hook Type | Top loading, full rotary hook bobbin | Vertical, full rotary, industrial hook bobbin | Top loading, full rotary hook bobbin |
| Bobbin Style | Class 15 | L-Style | Class 15 |
| Thread Tension Control | Manual | Manual | Automatic |
| Feed System | 4 Piece Feed Dog | Standard | Dual Feed-Ready |
| Bobbin Winding | Auto-Declutch | Independent Motor | Auto-Declutch |
| Cover | Hard Cover | Dust Cover | No |
| Weight | 38 lbs |
|---|---|
| Dimensions | 26 × 18 × 15 in |
