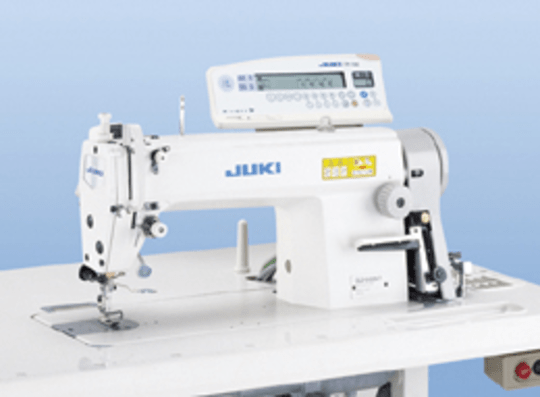

Juki Industrial Machines Juki DLD-5430N-7 1-needle, Differential-feed, Lockstitch Machine
Roll over image to zoom in Click on image to zoom
Juki Industrial Machines Juki DLD-5430N-7 1-needle, Differential-feed, Lockstitch Machine

Juki DLD-5430N-7 1-needle, Differential-feed, Lockstitch Machine

Contact us

  • 1-needle, Differential-feed, Lockstitch Machine

    The industrial machine is a needle-feed type. With its highly reliable bottom-differential-feed mechanism, the machine promotes the production of upgraded-quality products while increasing efficiency.

    Specifications:

    Model name DLD-5430N-7, 5430N
    Max. sewing speed 4,500sti/min
    Max. stitch length 5mm
    Max. top-feed amount Shirring 1:1.5 (max. 1:3), Stretching 1:0.5
    Needle bar stroke 30.7mm
    Presser foot By knee: 13mm
    Needle DB×1 (#14), 134 (Nm90)
