***Important Model Update***
The Consew 199RB-1A-2 is the newest version of the 199RB-1A, replacing the previous 199RB-1A-1 model. Most operating features and specifications remain unchanged.
Please note that, unlike the previous version, the cams used in the 199RB-1A-2, 199RB-2A-2, and 199RB-3A-2 are model-specific and are not interchangeable between machines. This design is similar to the original Japanese-manufactured 199RB series, which also used non-interchangeable cams.
Customers requiring a different stitch pattern should select the appropriate 1A, 2A, or 3A machine configuration when ordering.

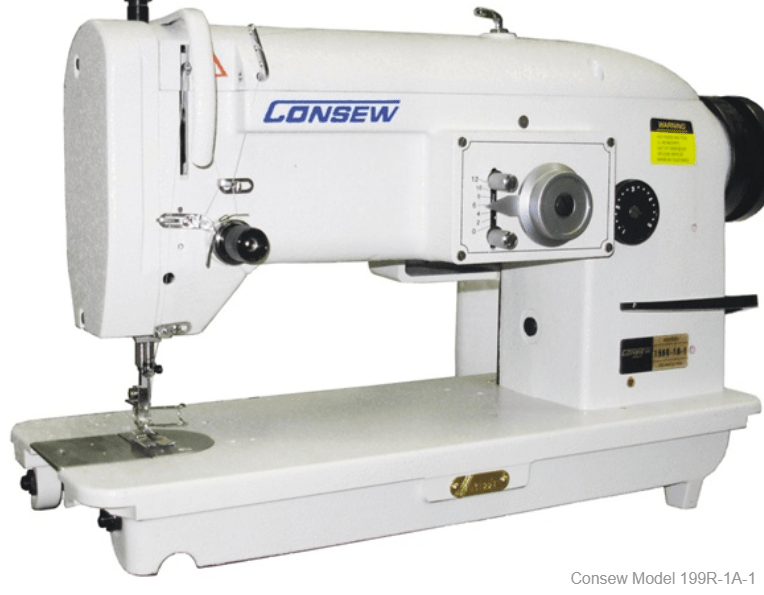

Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine
With: Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher
APPLICATIONS
- Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials.
- Federal stitch 304
FEATURES
- Horizontal axis transverse rotary hook
- Maximum width of zig-zag: 3/8" (9.5mm)
- Straight stitcher when zig-zag is set to 'O' mm
- Long arm with 10" free space between needle and arm (all 18 7/8" bed models)
- Locking zig-zag width regulator
- Reverse stitching
- Optional: Interchangable between 1A, 2A & 3A stitches; Additional parts required (not included)
-

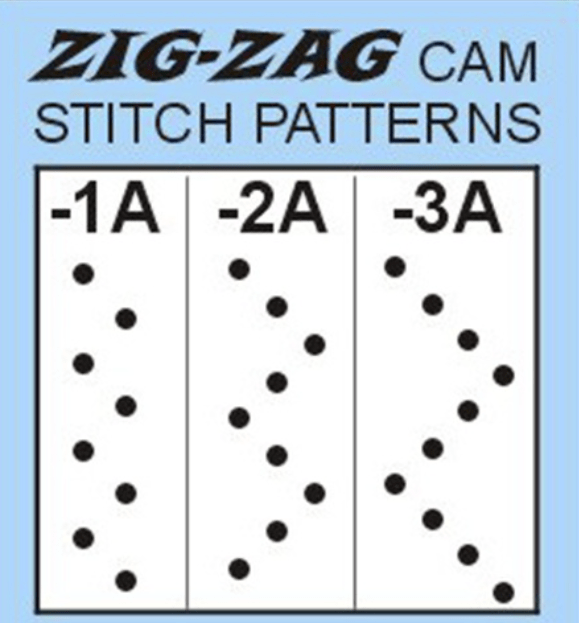

VERSIONS (see picture of stitch patterns):
199R-1A-2 • 1 Stitch Zig-Zag (304)
199R-2A-2 • 2 Stitch Zig-Zag (308)
199R-3A-1 • 3 Stitch Zig-Zag
SPECIFICATIONS
Number of Needles 1 (Single) Feeding Mechanism Needle Feed Workspace Standard Workspace Standard or Full Function Standard Functions Speed, Max (S.P.M.) Zig-Zag 3000
Straight 3200Clearance Under Presser Foot 15/64" (6mm) Stitch Length 5 s.p.i. (5mm) Work Space 10" (258mm) Needle 16 x 95 Bobbin Metal B75
Pre-wound LBed Size 7 x 18 7/8" (178mm x 480mm) Needle Bar Stroke 1 11/32" (34mm) Hook B-70 Zig-Zag Stitch Width 3/8" (9.5mm)
