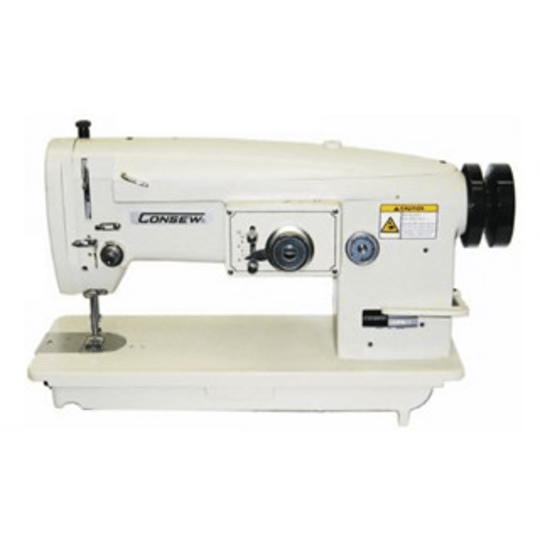

Consew Model 199R-2A-1
APPLICATIONS
- Three step/two stitch zig-zag Federal stitch 308
- For sewing elastic and other stretch materials, as well as for ornamental stitching
- For stitching such products as boat and truck covers, tents, awnings sails, parachutes, tarapaulins, canvas bags, also many items of military and naval equipment
- Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials
- Especially desierable where reinforced stitch is necessary
- Also available with special fittings for rope tacking operations
- Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment
FEATURES
- Horizontal axis transverse rotary hook
- Maximum width of zig-zag: 3/8" (9.5mm)
- Straight stitcher when zig-zag is set to 'O' mm
- Long arm with 10" free space between needle and arm (all 18 7/8" bed models)
- Locking zig-zag width regulator
- Reverse stitching
- Special fittings available for rope end and rope loop stitching
- Optional: Interchangable between 1A, 2A & 3A stitches; Additional parts required (not included)
ADDITIONAL INFORMATION
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Needle Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) |
Zig-Zag 2700 Straight 3000 |
| Clearence Under Presser Foot | 15/64" (6mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10" (258mm) |
| Needle | 16 x 95 |
| Bobbin |
Metal B75 Pre-wound L |
| Bed Size | 7 x 18 7/8" (178mm x 480mm) |
| Needle Bar Stroke | 1 11/32" (34mm) |
| Hook | B-70 |
| Zig-Zag Stitch Width | 3/8" (9.5mm) |
