Description
OVERVIEW

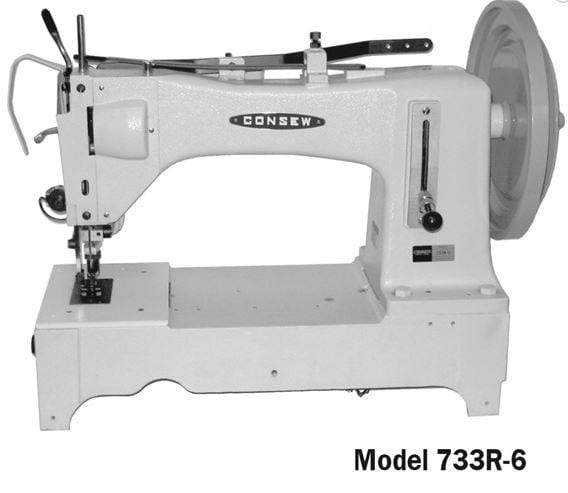

Extra Heavy Duty, Long Arm, Single Needle, Drop Feed, Alternating, Presser Feet, Lockstitch Machine.
With: Extra Large, Long Beak, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-11/32” - 34 mm), Two Row Feeder, Reverse Feed
NOTES: (Replaces Model 733R-5
Also Available:

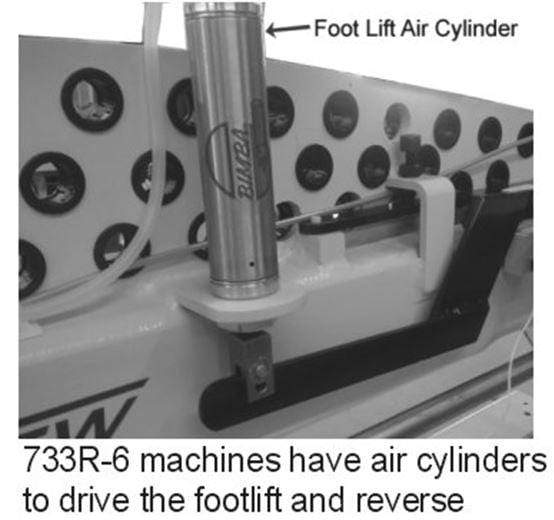

Model 733R-6AL(N) with air powered reverse and presser footlift

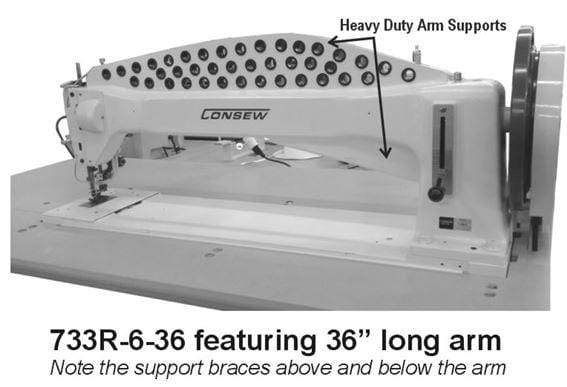

Model 733R-6-36 featuring 36” long arm
APPLICATIONS

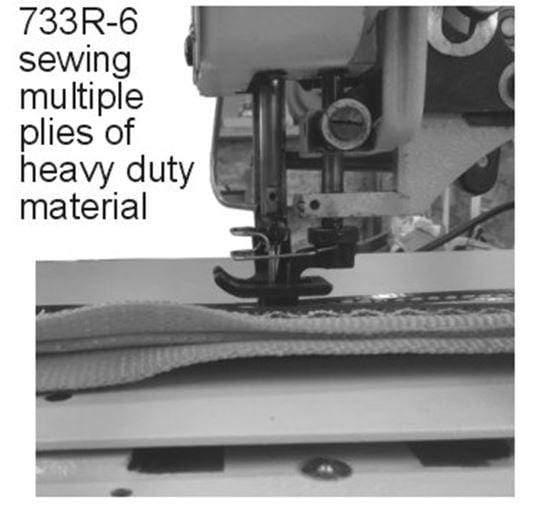

- For stitching extra heavy-weight materials. Can sew up to size Tex 556 cord (thread.)
- Designed for such operations and products as extra heavy duty harnesses and slings (can sew up to 18,000 lb strength webbing,) safety and logging belts, cargo slings, tents, sails, tarpaulins and covers, fabric structures, construction barriers, buffing wheels, parachutes, balloons, industrial bags, boot stitching, book binding
FEATURES
- Syncronized upper and lower feeding mechanism assures uniform stitching
- Alternating presser feet
- Steel insert for take-up hinge
- Reverse stitching - hand or foot operated
- Stitch regulator - hand or foot operated
- Presser foot lift - hand or foot operated

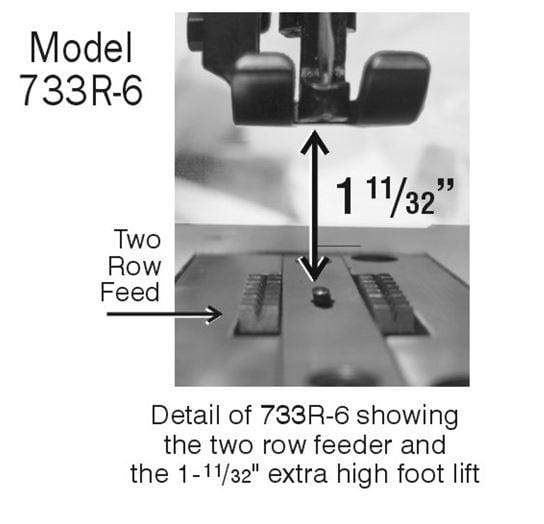

- 1-11/32 inch presser foot lift (Can sew up to 6 plies of webbing)
- Two row feeder
- Two stitches to the inch
- Stitches per minute - 550
- Extra large vertical and horizontal workspace, oscillating shuttle, hook and bobbin
- Belt guard
- Design to sew Cordura and Dyneema material, up to 18,000 lb strength webbing and can use up to size Tex 556 cord (thread.)
733R-6 IMPROVEMENTS
- Improvements allowing for use of thicker thread and heavier materials:
• 1-3/8” (35mm) needle clearance
• More leverage on presser foot lifter for easier lifting
• Now comes with bobbin spindle adapter already installed for pre-wound bobbins
Along with modifications /improvements to
• Needle Plate • Center Foot • Needle Bar Clamp • Shuttle Driver
• Stitch Regulator Limiting Pins and other modifications aimed at smoother running with heavier threads and materials.
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 550 |
| Clearance Under Presser Foot | 1 1/4" (32mm) |
| Stitch Length | 2 s.p.i. (13mm) |
| Hook Size | Large |
| Work Space | 16 1/4" (413mm) |
| Needle | 1000 or 1000H |
| Bobbin | Pre-Wound 41 |
| Bed Size | 10" x 26 1/4" (258mm x 665mm) |
| Stitch Type | 301 |
| Gross Weight | 348 lbs. (158 kgs) |
| Weight | 231 lbs. (105kg) |
| Needle Bar Stroke | 2 3/32" (53mm) |
| Hook | 35224 |
