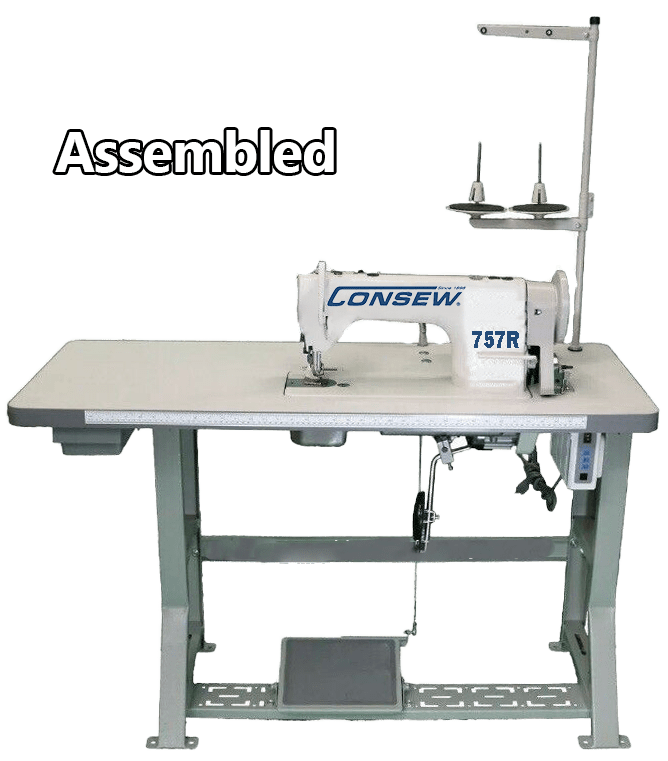

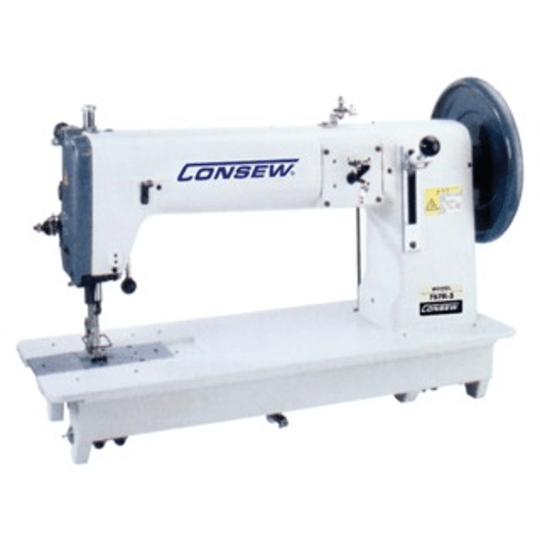

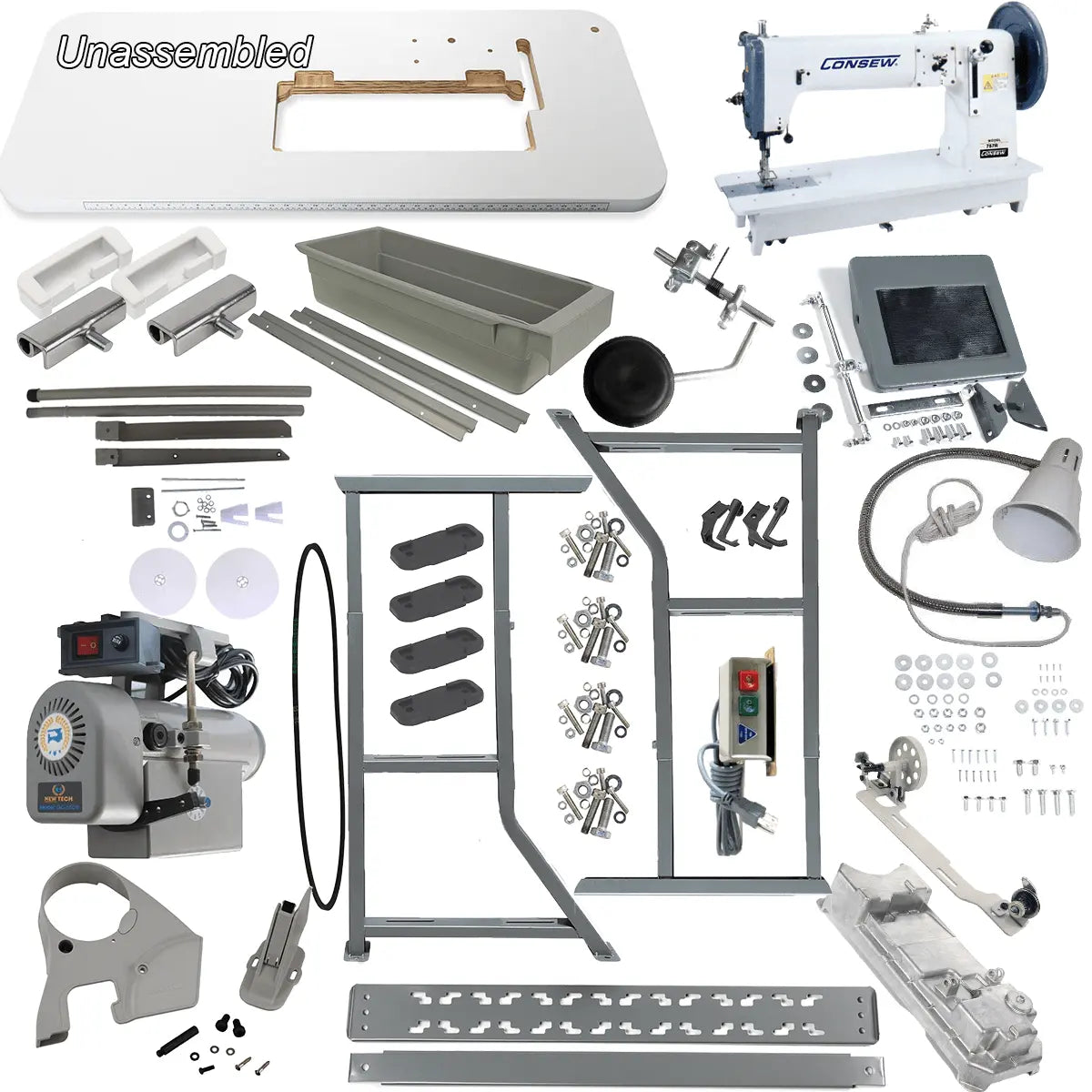

Consew Model 757R
APPLICATIONS
- Suitable for sewing heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
- Appropriate for use in upholstery, footwear, leather, canvas industries.
- Designed for stitching such products as tents, sails, harnesses, tarpaulins, safety belts, parachutes, balloons, industrial bags, boots, book bindings; auto, boat and furniture upholstery, sports and camping equipment, orthopedic appliances, suitcases, knapsacks, and outerwear made of extra heavy duty materials.
- Designed for extra thick threads
FEATURES
- Large oscillating shuttle hook
- Work space 16½" (420mm)
- Reverse feed
- Built-in bobbin winder
- Cam take-up lever
- Extra high presser lift for sewing extra heavy materials
- Heavy balance wheel
- Triple Transport (walking foot): Bottom, top and needle feed.
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 1200 |
| Stitch Length | 2 1/2 s.p.i. (10mm) |
| Work Space | 15 3/4" (400mm) |
| Needle | 7 x 3 |
| Bobbin | Metal 28092 Prewound 33 |
| Bed Size | 26" 9 7/8" (660mm x 251mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 2 13/64" (56mm) |
| Hook | 28091C |
| Presser Lift | 1" (25.4mm) |
