Consew 206RB-5 sewing industrial sewing heavy duty sewing machine lockstitch walking foot
OVERVIEW
Triple Feed, Heavy Duty, Single Needle, Drop Feed, Needle Feed, Compound Feed, Alternating (Walking) Presser Feet, Lockstich Machine
With: Centralized Arm Lubrication, Reservoir-Oiled Hook with Micrometic Control Valve, Large Horizontal Axis Rotary Hook and Bobbin, Adjustable Reverse Feed, Locking Stitch Regulator, Safety Clutch
The Consew 206rb5 Walking Foot Sewing Machine is an industrial-strength machine designed to meet the toughest demands of the textile and apparel industries. This reliable machine is packed with powerful features that make it a top-notch choice for any business.
The Consew 206rb5 has a powerful servo motor that provides maximum speed and control, allowing for smooth, precise stitching. It also has an adjustable stitch length and width, allowing for custom stitching. The included reverse lever facilitates a quick stitch turn-around, allowing for faster production times. The extra-large spool pin and bobbin make threading effortless, and the easy-to-read tension dial ensures perfect stitch tension every time.
The Consew 206rb5 is made with a heavy-duty steel frame, making it durable and long-lasting. The machine is oil-free and easy to clean, saving time and money. The included bed plate and foot control allows for an effortless stitch start, while the adjustable presser foot pressure easily adjusts to suit the fabric being sewn.
The Consew 206rb5 Walking Foot Sewing machine is the perfect choice for any business in the textile and apparel industries, offering industrial-strength stitching and reliable performance.
SPECIFICATIONS
Needle Feed Walking Foot Machine Model C206RB5. Available with Table/Stand/Motor. Large bobbin. Reverse stitching. Safety clutch with push button re-engagement. Up to three stitches to the inch. Bobbin can be changed without removing object being sewn. High presser foot lift (9/16") (15mm). 8mm maximum stitch length. All gear driven hook mechanism. Large horizontal axis rotary hook. Sews up to 3300 SPM. Application: For sewing light to heavyweight materials such as leather, vinyl, upholstery, synthetics, canvas and various coated and laminated products. This item carries additional shipping charge.
Number of Needles 1 (Single)
Feeding Mechanism Walking Foot
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 3300
Clearance Under Presser Foot 9/16" (14mm)
Stitch Length 2 1/2 s.p.i. (10mm)
Hook Size Large
Work Space 10 5/16" (258mm)
Needle 135 x 17
Bobbin Pre-Wound M
Bed Size 7" 18 7/8" (178mm x 480mm)
Stitch Type 301
Gross Weight 82 lbs. (37.25 kgs)
Total Carton Size 23" x 10" x 22"
Needle Bar Stroke 1 5/16" (33mm)
Hook 18033
FEATURES
Extra long stitch - 2-1/2 S.P.I. (10mm)
Large Bobbin. Bobbin can be changed without removing object being sewn
Thread release finger (for heavy thread)
High presser foot lift - 9/16" (14mm)
Centralized arm lubrication. Reservoir-oiled hook with micrometric control valve
All gear driven hook mechanism. Large horizontal axis hook
Safety clutch with push-button re-engagement
Adjustable reverse stitching can be same length as forward stitch
Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material and thus assures positive stitching
Walking feet, needles and other attachments interchangeable with Consew models 226R-2, 255RB-2
Needle plate, foot and feed dog can be changed for special operations
Standard attachments easily installed
Compound feed, walking foot mechanism insures even feeding of material
Locking stitch regulator prevents changes in stitch length from vibration
APPLICATIONS
For sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas and various coated and laminated products.
Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances etc.

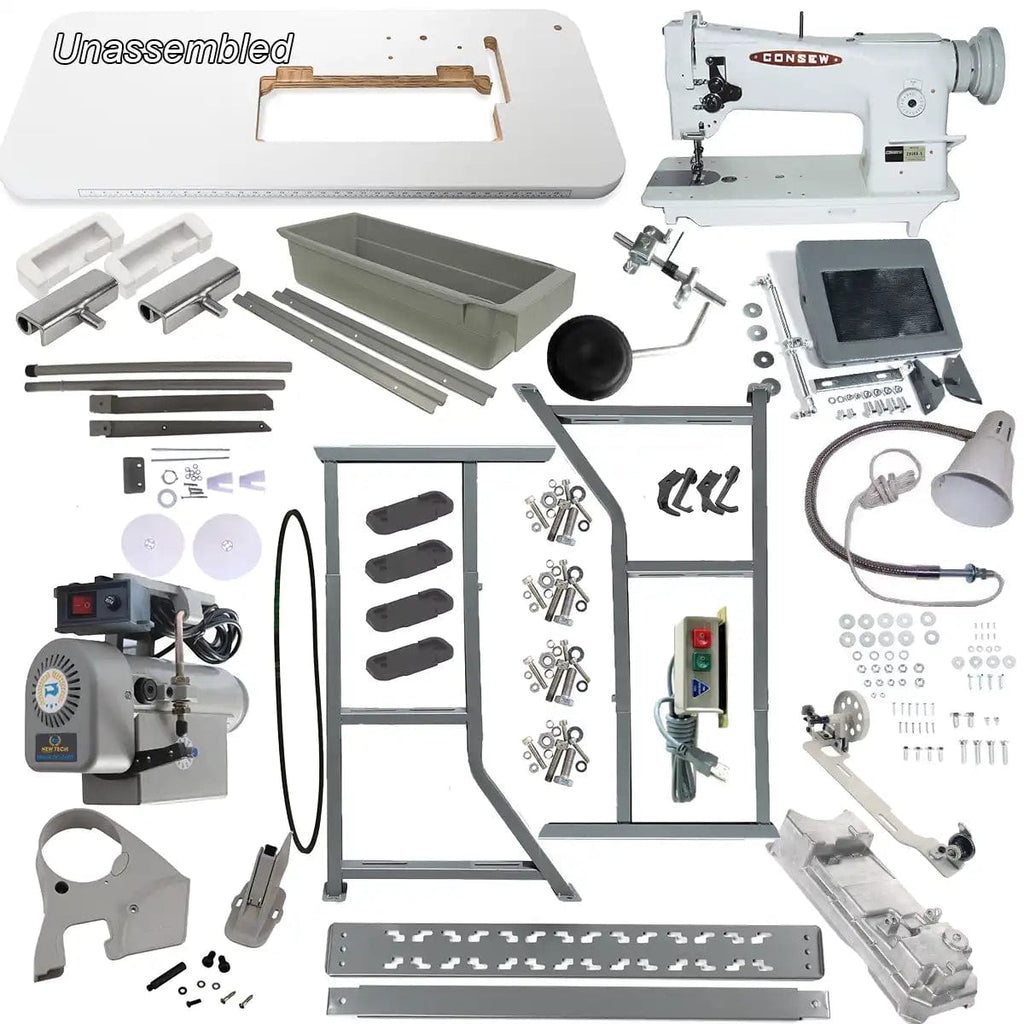

Motor & Stand
The Consew CS-301 Industrial Sewing Machine is equipped with a servo motor, which allows for greater precision and control over the speed of the needle. This motor provides smooth and consistent power delivery, allowing for greater accuracy and control compared to a standard clutch motor. The servo motor also enables higher maximum speeds (3300 S.P.M.), as well as adjustable reverse stitching. This makes it ideal for fast and accurate stitching on a variety of materials, from light to heavy-weight fabrics, as well as coated and laminated materials. The servo motor also allows for greater energy efficiency, as it only uses the power that is necessary to perform a particular task. This makes it an ideal choice for businesses in the textile/apparel industry, as it can help to reduce the overall costs associated with production.
Genuine K-Leg stands are a must-have for businesses in the textile/apparel industry, as they provide a secure and stable platform for the Consew CS-301 Industrial Sewing Machine. By using a genuine stand, you can ensure that your machine remains steady and secure, allowing for precise and accurate stitching. The stand also helps to reduce the amount of noise that is generated by the machine, making it much easier to work in a quiet environment. Furthermore, the genuine stand also helps to protect the machine from dust, dirt and debris, prolonging its life and performance. A genuine stand is an essential companion for the Consew CS-301 Industrial Sewing Machine, allowing for a secure and accurate stitching experience.
What types of materials can the consew 206rb5 walking foot industrial sewing machine sew?
The Consew 206RB5 Walking Foot Industrial Sewing Machine is equipped to handle a variety of materials such as canvas, leather, vinyl, denim, fleece, and other heavier fabrics. It has the power to handle up to 5mm of stitch length and boasts a high foot lift of up to 11mm, making it a great choice for those who need to sew thick materials. The strong walking foot helps keep the fabric in place without slipping, which makes it perfect for sewing jobs that require precision and accuracy.
How easy is the consew 206rb5 walking foot industrial sewing machine to use?
The Consew 206RB5 walking foot industrial sewing machine is easy to use, even for beginner sewers. It comes with an easy-to-follow instruction manual and features an automatic lubrication system to keep it running smoothly. With its adjustable stitch length, reverse sewing capability, and adjustable needle positions, this machine can easily tackle a wide variety of sewing projects. Additionally, the machine's heavy-duty construction allows for robust and reliable performance, making it perfect for any business in the apparel and textile industries.
What is the maximum stitch length that the consew 206rb5 walking foot industrial sewing machine can sew?
The consew 206rb5 walking foot industrial sewing machine can sew up to a maximum stitch length of 6mm. It also has a maximum stitch width of 5mm and reverse stitch lever that allows users to easily switch between forward and reverse stitching. This machine is ideal for businesses in the textile/apparel industry looking for a reliable, powerful, and easy-to-use sewing machine.
Is the consew 206rb5 walking foot industrial sewing machine suitable for large-scale production?
The Consew 206rb5 walking foot industrial sewing machine is well-suited for large-scale production. With its powerful direct-drive motor, built-in Reverse stitch regulator, and adjustable stitch length and width, this machine is capable of handling even the most demanding production jobs. Its durable design and robust construction ensure that it can stand up to the pressures of heavy-duty production environments. Additionally, its included accessories, such as a walking foot and a sewing table, make it a great choice for businesses looking for an industrial-grade machine that can handle large-scale production tasks.
What is the maximum speed of the consew 206rb5 walking foot industrial sewing machine?
The Consew 206rb5 Walking Foot Industrial Sewing Machine offers a maximum speed of up to 2000 stitches per minute. This powerful machine is the perfect choice for businesses in the textile and apparel industry looking for reliable and productive sewing capabilities. With its robust build, easy-to-use features, and fast speed, this sewing machine is designed to help you quickly and efficiently finish all of your projects.
The Consew 206rb5 Walking Foot Industrial Sewing Machine offers businesses in the apparel & textile industries reliable & powerful performance, with max stitch length of 6mm, max speed of 2000 stitches per minute & adjustable needle positions.
-
Needle Feed Walking Foot Machine Model C206RB5. Available with Table/Stand/Motor. Large bobbin. Reverse stitching. Safety clutch with push button re-engagement. Up to three stitches to the inch. Bobbin can be changed without removing object being sewn. High presser foot lift (9/16") (15mm). 8mm maximum stitch length. All gear driven hook mechanism. Large horizontal axis rotary hook. Sews up to 3300 SPM. Application: For sewing light to heavyweight materials such as leather, vinyl, upholstery, synthetics, canvas and various coated and laminated products. This item carries additional shipping charge.
- Number of Needles 1 (Single)
- Feeding Mechanism Walking Foot
- Workspace Standard Workspace
- Standard or Full Function Standard Functions
- Speed, Max (S.P.M.) 3300
- Clearance Under Presser Foot 9/16" (14mm)
- Stitch Length 2 1/2 s.p.i. (10mm)
- Hook Size Large
- Work Space 10 5/16" (258mm)
- Needle 135 x 17
- Bobbin Pre-Wound M
- Bed Size 7" 18 7/8" (178mm x 480mm)
- Stitch Type 301
- Gross Weight 82 lbs. (37.25 kgs)
- Total Carton Size 23" x 10" x 22"
- Needle Bar Stroke 1 5/16" (33mm)
- Hook 18033
-
Consew 206RB-5 sewing industrial sewing heavy duty sewing machine lockstitch walking foot
OVERVIEW
Triple Feed, Heavy Duty, Single Needle, Drop Feed, Needle Feed, Compound Feed, Alternating (Walking) Presser Feet, Lockstich Machine
With: Centralized Arm Lubrication, Reservoir-Oiled Hook with Micrometic Control Valve, Large Horizontal Axis Rotary Hook and Bobbin, Adjustable Reverse Feed, Locking Stitch Regulator, Safety Clutch
The Consew 206rb5 Walking Foot Sewing Machine is an industrial-strength machine designed to meet the toughest demands of the textile and apparel industries. This reliable machine is packed with powerful features that make it a top-notch choice for any business.
The Consew 206rb5 has a powerful servo motor that provides maximum speed and control, allowing for smooth, precise stitching. It also has an adjustable stitch length and width, allowing for custom stitching. The included reverse lever facilitates a quick stitch turn-around, allowing for faster production times. The extra-large spool pin and bobbin make threading effortless, and the easy-to-read tension dial ensures perfect stitch tension every time.
The Consew 206rb5 is made with a heavy-duty steel frame, making it durable and long-lasting. The machine is oil-free and easy to clean, saving time and money. The included bed plate and foot control allows for an effortless stitch start, while the adjustable presser foot pressure easily adjusts to suit the fabric being sewn.
The Consew 206rb5 Walking Foot Sewing machine is the perfect choice for any business in the textile and apparel industries, offering industrial-strength stitching and reliable performance.
- Extra long stitch - 2-1/2 S.P.I. (10mm)
- Large Bobbin. Bobbin can be changed without removing object being sewn
- Thread release finger (for heavy thread)
- High presser foot lift - 9/16" (14mm)
- Centralized arm lubrication. Reservoir-oiled hook with micrometric control valve
- All gear driven hook mechanism. Large horizontal axis hook
- Safety clutch with push-button re-engagement
- Adjustable reverse stitching can be same length as forward stitch
- Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material and thus assures positive stitching
- Walking feet, needles and other attachments interchangeable with Consew models 226R-2, 255RB-2
- Needle plate, foot and feed dog can be changed for special operations
- Standard attachments easily installed
- Compound feed, walking foot mechanism insures even feeding of material
- Locking stitch regulator prevents changes in stitch length from vibration
-
For sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas and various coated and laminated products.
Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances etc.
-
The Consew CS-301 Industrial Sewing Machine is equipped with a servo motor, which allows for greater precision and control over the speed of the needle. This motor provides smooth and consistent power delivery, allowing for greater accuracy and control compared to a standard clutch motor. The servo motor also enables higher maximum speeds (3300 S.P.M.), as well as adjustable reverse stitching. This makes it ideal for fast and accurate stitching on a variety of materials, from light to heavy-weight fabrics, as well as coated and laminated materials. The servo motor also allows for greater energy efficiency, as it only uses the power that is necessary to perform a particular task. This makes it an ideal choice for businesses in the textile/apparel industry, as it can help to reduce the overall costs associated with production.
Genuine K-Leg stands are a must-have for businesses in the textile/apparel industry, as they provide a secure and stable platform for the Consew CS-301 Industrial Sewing Machine. By using a genuine stand, you can ensure that your machine remains steady and secure, allowing for precise and accurate stitching. The stand also helps to reduce the amount of noise that is generated by the machine, making it much easier to work in a quiet environment. Furthermore, the genuine stand also helps to protect the machine from dust, dirt and debris, prolonging its life and performance. A genuine stand is an essential companion for the Consew CS-301 Industrial Sewing Machine, allowing for a secure and accurate stitching experience.
-
What types of materials can the consew 206rb5 walking foot industrial sewing machine sew?
The Consew 206RB5 Walking Foot Industrial Sewing Machine is equipped to handle a variety of materials such as canvas, leather, vinyl, denim, fleece, and other heavier fabrics. It has the power to handle up to 5mm of stitch length and boasts a high foot lift of up to 11mm, making it a great choice for those who need to sew thick materials. The strong walking foot helps keep the fabric in place without slipping, which makes it perfect for sewing jobs that require precision and accuracy.
How easy is the consew 206rb5 walking foot industrial sewing machine to use?
The Consew 206RB5 walking foot industrial sewing machine is easy to use, even for beginner sewers. It comes with an easy-to-follow instruction manual and features an automatic lubrication system to keep it running smoothly. With its adjustable stitch length, reverse sewing capability, and adjustable needle positions, this machine can easily tackle a wide variety of sewing projects. Additionally, the machine's heavy-duty construction allows for robust and reliable performance, making it perfect for any business in the apparel and textile industries.
What is the maximum stitch length that the consew 206rb5 walking foot industrial sewing machine can sew?
The consew 206rb5 walking foot industrial sewing machine can sew up to a maximum stitch length of 6mm. It also has a maximum stitch width of 5mm and reverse stitch lever that allows users to easily switch between forward and reverse stitching. This machine is ideal for businesses in the textile/apparel industry looking for a reliable, powerful, and easy-to-use sewing machine.
Is the consew 206rb5 walking foot industrial sewing machine suitable for large-scale production?
The Consew 206rb5 walking foot industrial sewing machine is well-suited for large-scale production. With its powerful direct-drive motor, built-in Reverse stitch regulator, and adjustable stitch length and width, this machine is capable of handling even the most demanding production jobs. Its durable design and robust construction ensure that it can stand up to the pressures of heavy-duty production environments. Additionally, its included accessories, such as a walking foot and a sewing table, make it a great choice for businesses looking for an industrial-grade machine that can handle large-scale production tasks.
What is the maximum speed of the consew 206rb5 walking foot industrial sewing machine?
The Consew 206rb5 Walking Foot Industrial Sewing Machine offers a maximum speed of up to 2000 stitches per minute. This powerful machine is the perfect choice for businesses in the textile and apparel industry looking for reliable and productive sewing capabilities. With its robust build, easy-to-use features, and fast speed, this sewing machine is designed to help you quickly and efficiently finish all of your projects.
