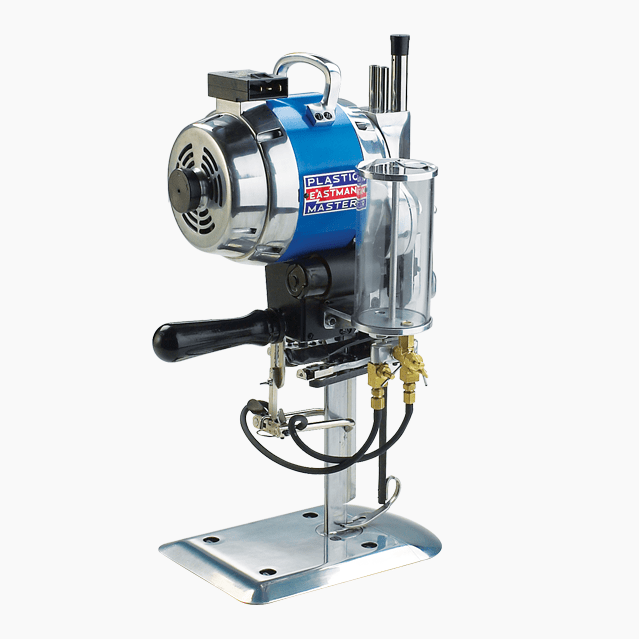

MODEL 629PM / 627PM – Eastman’s Plastic Master gravity fed, blade lubrication, and cooling system have been designed specifically to eliminate materials from fusing during the cutting of intricate patterns or straight lines. This is a perfect choice for cutting plastic and other fusible materials like cotton backed vinyl, PVC and other reinforced plastics.
Eastman’s Plastic Master™ gravity fed, blade lubrication and cooling system have been designed specifically to eliminate materials from fusing during the cutting of intricate patterns or straight lines. This is a perfect choice for cutting plastic and other fusible materials like cotton backed vinyl, PVC and other reinforced plastics. The Plastic Master™ is available in a standard version, 629XPM, and a heavy-duty version, 627XPM, where a moistening attachment is added.
All Eastman machines are built with the highest grade materials available.
Features
- Heat reducing features such as a dual speed motor, short stroke and wave blade reduce blade contact by 80%
- Special gravity feed moistening attachment to eliminate fusing
- Coolant flow can be adjusted to achieve the desired degree of lubrication and cooling required
Additional Information
| Motors |
110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380V, 3ph, 50Hz Standard: Single Speed Optional: Dual Speed |
|---|---|
| Horsepower |
.65hp, 1ph .93hp, 3ph |
| Weight |
34 lbs. (15.4kg) |
| Blades |
Standard: Carbon Steel Optional: High Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip |
| Belts |
Standard: Medium Grit Optional: Fine, Coarse, Rough |
| Options |
Micro Fog only available for 6 in. and 8 in. |
| Stroke Sizes |
1.125 in. (2.86cm) 1.25 in. (3.18cm) 1.5 in. (3.81cm) 1.75 in. (4.45cm) |
| Blade Sizes |
6 in (15.2 cm) 8 in. (20.3 cm) |
| Cutting Capacity |
4.5 in. (11.4cm) 6.5 in (16.5cm) |
