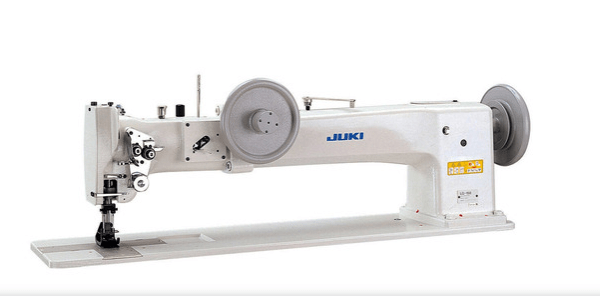

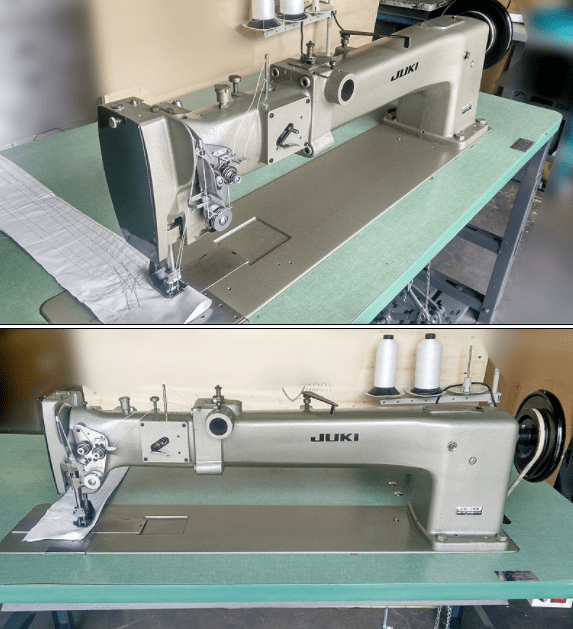

Juki LG-158-1 Single Needle 30" LongArm Walking Foot Needle Feed Sewing Machine +Power Stand LG158, 10mm SL, 7/8" Lift, Big M Bobbin, 100 DDx1 Needles

Sale price$ 13,000.00



With a generous 750 mm of free space under the arm and powerful unison-feed that provides a maximum stitch length of 10 mm, the machine delivers outstanding productivity when sewing heavy materials such as tents and sheets.

  • Easy Reverse Sewing with Simple Operation
  • Vertical Axis Large Hook with Big Bobbin
  • Automatic Thread Safety Device
  • Easy Feed Walking Foot
  • Front End Bobbin Winder
  • Works Great on Tents, Awnings, Leather, Canvas, and Vinyl

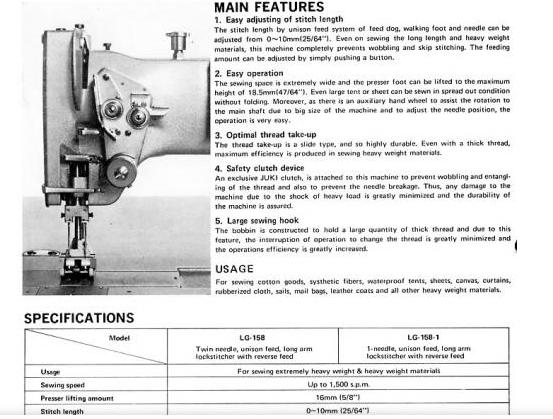

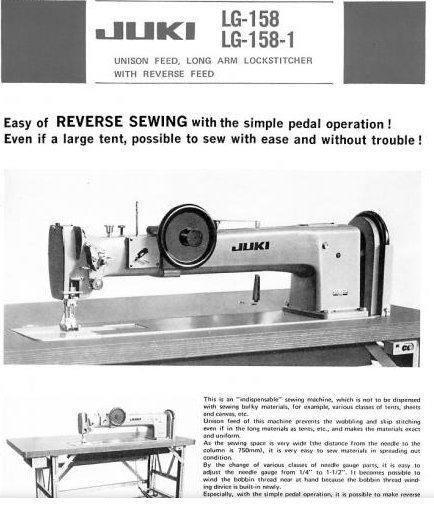

Catalog for Juki LG-158-1 Single Needle

Instruction Manual for Juki LG-158-1 Single Needle

  • 30" of free space under the arm
  • 10mm stitch length
  • Delivers uncomparable performance on heavy-weight materials such as tents, awnings, leather, canvas, and vinyl
  • Front end bobbin winder enables the user to operate the machine much easier
  • The presser foot goes up as high as 7/8" to ensure easy placement
  • Unison feed mechanism insures smooth and speedy feed of materials through the machine
  • Easy feed with walking foot
  • Vertical axis large hook which reduces the bobbin thread replacement
  • Automatic thread safety device which prevents damage

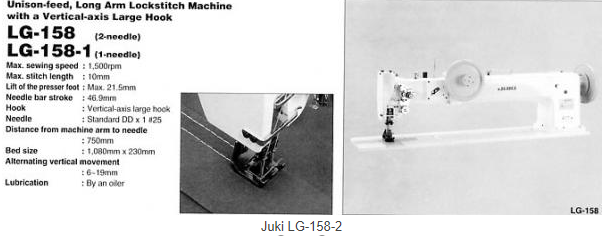

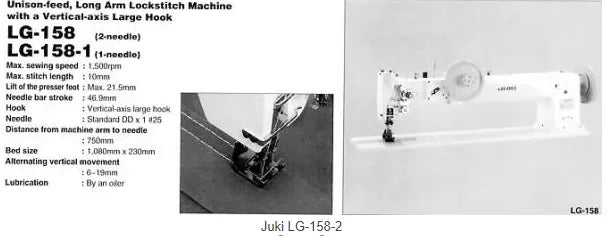

  • Model name LG-158-1 (1-needle)
    Max. sewing speed 1,500sti/min*
    Max. stitch length 10mm (normal/reverse feed)
    Needle bar stroke 46.9mm
    Needle gauge Standard 19.1mm (3/4") -
    Lift of the presser foot By pedal: 21.5mm
    Thread take-up Side type
    Alternating vertical movement 6mm
  • 19mm
    Hook Vertical-axis large hook
    Needle (at the time of delivery) DD×1 (#25)
    Thread #20
  • #5, B69
  • B138, Nm=40/3
  • 20/3
    Safety mechanism: Safety Clutch Provided as standard
    Bobbin winder Built on the machine arm
    Lubrication By an oiler
    Lubricating oil JUKI New Oil No.1 (equivalent to ISO VG7)
    Distance from needle to machine arm 750mm
    Bed size 1,088mm×230mm
    Weight of the machine head 108kg
    *“sti/min” stands for “Stitches per Minute.”




See You Tube Videos on various models of Juki LG158

See Google Videos on various models of Juki LG158


  • US Warranty 90 Days labor on defects in materials and workmanship.
  • Non-US Warranty: 30 days parts and labor


    Made in Japan
