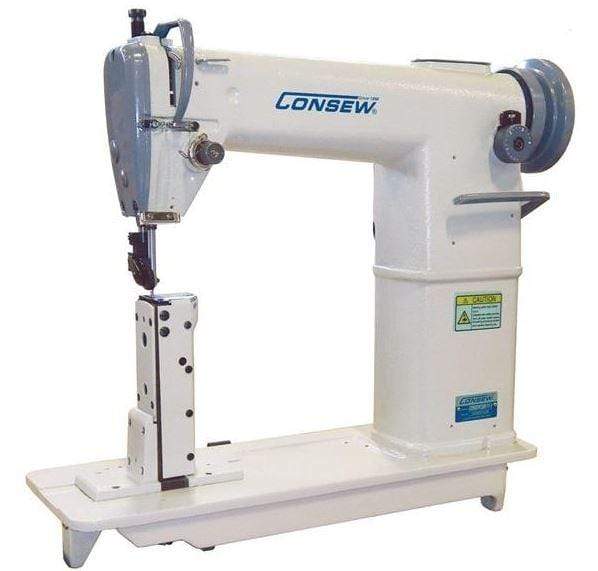

Consew 228R-11-1 High Speed, Post Bed, 1 Needle, Drop Feed, Lockstitch Industrial Sewing Machine With Table and Servo Motor

Vertical Axis Hook, Roller Presser Feet, Reverse Feed

MACHINE APPLICATIONS:

• For sewing light and medium weight fabric, leather, vinyl, canvas and various laminated and coated materials
• Designed for stitching articles such as raincoats, underwear, corsets, brassieres and similar products
• Suitable for vamping, space stitching and tipping on shoes

MACHINE FEATURES:

• Vertical axis hook
• Drop feed

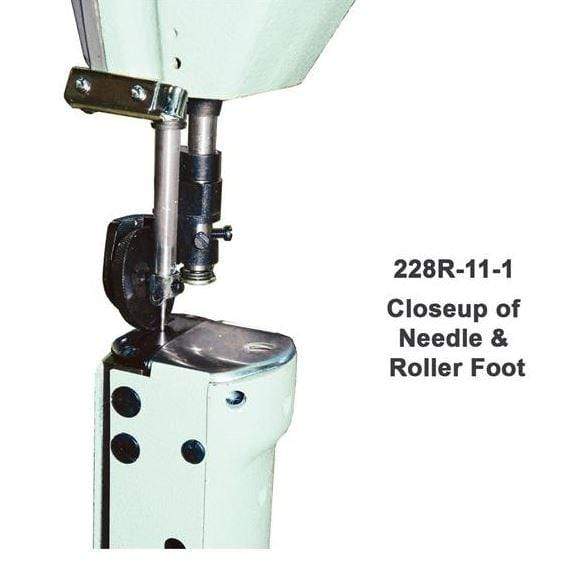

• Roller presser foot allows for turning of sharp corners and tight curves
• Single needle
• Stitches per minute - 3000*
• Reverse feed

MACHINE SPECIFICATIONS:

• Number of Needles:  1 (Single)
• Feeding Mechanism:  Drop Feed
• Workspace:  Standard Workspace
• Standard or Full Function:  Standard Functions
• Speed, Max (S.P.M.):  3000
• Clearance Under Presser Foot:  15/64" (6mm)
• Stitch Length:  5 s.p.i. (5mm)
• Needle:  DP-F22/134S
• Bobbin:  Pre-Wound G
• Stitch Type:  301
• Needle Bar Stroke:  1 1/4" (32mm)
• Hook:  12032
• Post Height:  7" (178mm)
• Work Surface:  1 7/8" x 2" (48mm x 75mm)

ADDITIONAL INFORMATION

• 228R-11 Parts Book
• 228R-11 Instruction Manual
• 228R-11 Spec Sheet (PDF)

THE ADVANTAGES OF A SERVO MOTOR:

• They use up to 90% less power than clutch motors
• They are 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust.
• No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

• For sewing light and medium weight fabric, leather, vinyl, canvas and various
  laminated and coated materials
• Designed for stitching articles such as raincoats, underwear, corsets, brassieres.
  and similar products
• Suitable for vamping, space stitching and tipping on shoes
  Perfect for sewing patches on hats and jackets.

• Vertical axis hook
• Drop feed
• Roller presser foot allows for turning of sharp corners and tight curves
• Single needle
• Stitches per minute - 3000*
• Reverse feed
• Manual Lubrication (Model 228R-11-2 has Automatic Lubrication)
