Consew Industrial Machines Consew Model 146RB-1A-1

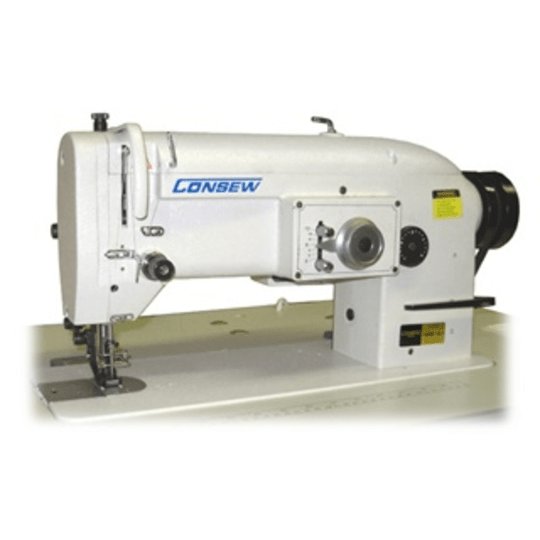

Consew Model 146RB-1A-1-Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Machine

Consew
Price:
$ 3,579.00

  • APPLICATIONS

    • For sewing medium to heavy weight fabrics that are difficult to feed when sewn.
    • For such materials and products as wet suits, shoes, boots, leather, tarpaulins.  Federal Stitch 304

    FEATURES

    • Large bobbin and horizontal axis transverse rotary hook
    • Wide zig-zag
    • Upper feed mechanism helps avoid slippage when sewing
    • Reverse stitching
    • Stitches per minute - 2500*
    • Optional: Interchangeable between 1A, 2A & 3A stitches; Additional parts required (not included).

    ADDITIONAL INFORMATION

    SPECIFICATIONS

    Number of Needles 1 (Single)
    Feeding Mechanism Walking Foot
    Workspace Standard Workspace
    Standard or Full Function Standard Functions
    Speed, Max (S.P.M.) 2500
    Clearence Under Presser Foot 25/64" (10mm)
    Stitch Length 5 s.p.i. (5mm)
    Work Space 10" (255mm)
    Needle 135 x 17
    Bobbin Metal 212O34-312
    Pre-wound M
    Bed Size 7" 18 7/8" (178m x 480mm)
    Needle Bar Stroke 1-11/32" (34mm)
    Hook B79
    Zig-Zag Stitch Width 3/8" (9.5mm)
