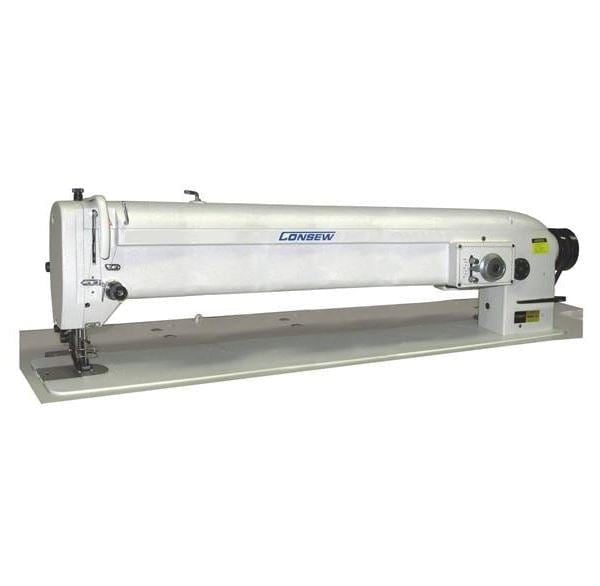

Consew Model 146RBL-1A-1


Call 1-800-487-7397 for details.


APPLICATIONS

  • For sewing medium to heavy weight fabrics that are difficult to feed when sewn.
  • For such materials and products as wet suits, shoes, boots, leather, tarpaulins.
  • Federal Stitch 304
  • 30" long arm for 30 inches of workspace.

FEATURES

  • Large bobbin and horizontal axis transverse rotary hook
  • Wide zig-zag
  • Upper feed mechanism helps avoid slippage when sewing
  • Reverse stitching
  • Stitches per minute - 2500*
  • Optional: Interchangeable between 1A, 2A & 3A stitches; Additional parts required (not included).

ADDITIONAL INFORMATION

SPECIFICATIONS

Number of Needles 1 (Single)
Feeding Mechanism Walking Foot
Workspace Long Arm
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 2500
Clearence Under Presser Foot 25/64" (10mm)
Stitch Length 5 s.p.i. (5mm)
Work Space 30" (765mm)
Needle 135 x 17
Bobbin Metal 212O34-312
Pre-wound M
Bed Size 7" x 33 1/4" (178mm x 848mm)
Needle Bar Stroke 1-11/32" (34mm)
Hook B79
Zig-Zag Stitch Width 3/8" (9.5mm)
