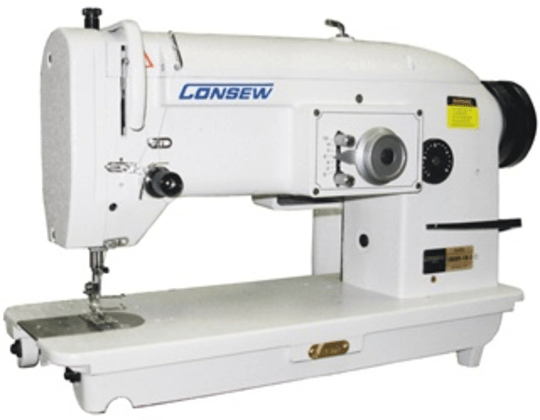

Description
APPLICATIONS
- Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials.
- Federal stitch 304
FEATURES
- Horizontal axis transverse rotary hook
- Maximum width of zig-zag: 3/8" (9.5mm)
- Straight stitcher when zig-zag is set to 'O' mm
- Long arm with 10" free space between needle and arm (all 18 7/8" bed models)
- Locking zig-zag width regulator
- Reverse stitching
- With large bobbin and horizontal axis transverse rotary hook
- Optional: Interchangable between 1A, 2A & 3A stitches; Additional parts required (not included)
VERSIONS (see picture of stitch patterns):
199RB-1A-1 • 1 Stitch Zig-Zag (304)
199RB-2A-1 • 2 Stitch Zig-Zag (308)
199RB-3A-1 • 3 Stitch Zig-Zag
ADDITIONAL INFORMATION
APPLICATIONS
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Needle Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) |
Zig-Zag 2000 Straight 2000 |
| Clearence Under Presser Foot | 15/64" (6mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10" (258mm) |
| Needle | 135 x 17 |
| Bobbin |
Metal 2120304-312 Pre-wound M |
| Bed Size | 7 x 18 7/8" (178mm x 480mm) |
| Needle Bar Stroke | 1 11/32" (34mm) |
| Hook | B79 |
| Zig-Zag Stitch Width | 3/8" (9.5mm) |
