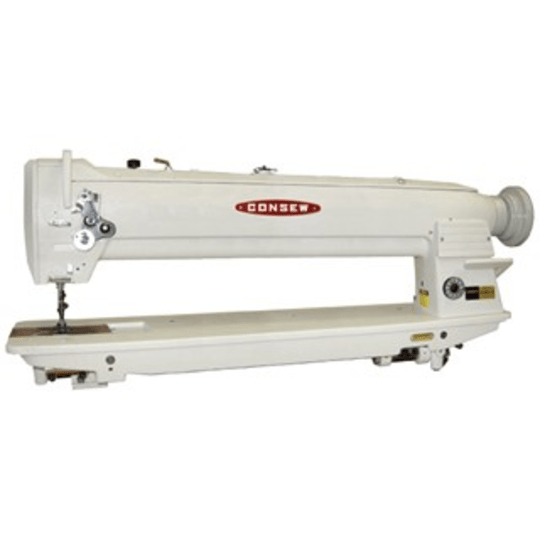

Consew Model 254RBL-25
APPLICATIONS
- For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics and various laminated and coated materials
- Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc.
FEATURES
- Centra-Lube® semi-automatic lubrication system
- Automatic hook lubrication
- Oil fed take-up
- Large bobbin and vertical axis hook
- Compound feed, walking foot mechanism assures uniform stitching
- Simple wing nut adjustment permits raising and lowering of the center foot to allow for sewing different thicknesses of material
- Safety clutch prevents the hook from being damaged
- Safety-type handwheel
- Stitch length indicator on outside of machine
- All sizes of cording feet available
- Standard attachments easily installed
- Reverse stitching
- 255RB-3 - Large bobbin and vertical axis hook and reverse feed and High-lift
255RBL-25 - Large bobbin and vertical axis hook, reverse feed - 25" long arm
255RBL - Special order, custom made in USA, up to 30” long arm
ADDITIONAL INFORMATION
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Needle Feed |
| Workspace | Long Arm |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2800 |
| Clearence Under Presser Foot | 9/16" (14mm) |
| Stitch Length | 4 s.p.i. (5.6mm) |
| Work Space | 25" (640mm) |
| Needle | 135 x 17 |
| Bobbin | Pre-Wound U |
| Bed Size | 7" x 28 1/4" (177mm x 708mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 1 5/16" (33mm) |
| Hook | 15040 |
