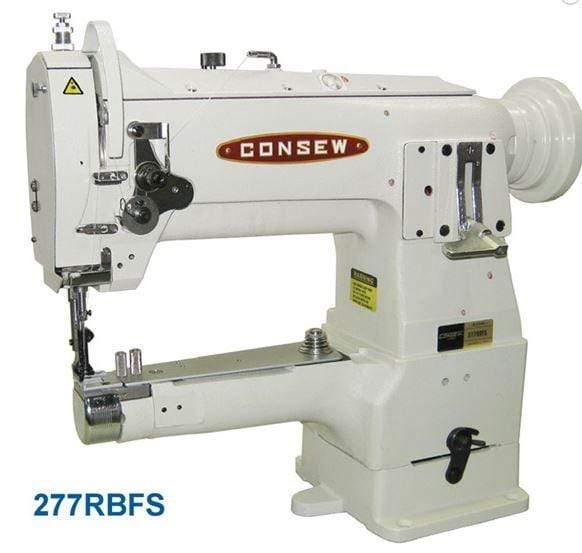

Consew Industrial Machines Consew Model 277RBFS-3

Consew Model 277RBFS-Heavy Duty, Narrow Cylinder Arm, Single Needle, Drop Feed, Needle Feed, (Compound Feed,) Alternating Presser Feet, Lockstitch Machines.

Regular price Call 1.800.487.7397 for price
/

Heavy Duty, Narrow Cylinder Arm, Single Needle, Drop Feed, Needle Feed, (Compound Feed,) Alternating Presser Feet, Lockstitch Machines.

with Centra-lube® Semi-automatic Lubrication System, Horizontal Axis Rotary Hook, Reverse Feed.

Model 277RBFS (large bobbin) is equipped for feed synchronized binder with horizontal feed and has a cylinder bed diameter of 1-31/32" (50mm)



APPLICATIONS

  • For sewing light to heavy-weight fabrics, leather, vinyl, upholstery, synthetics, canvas and various coated and laminated materials.
  • Especially designed for products with narrow openings.
  • For stitching tubular and curved work.
  • Suitable for sewing such products as hats, caps, shoes, sandals, slippers, tarpaulins, covers, sails, tents, awnings, umbrellas, bags, luggage, handbags, travelware accessories, wearing apparel, etc.
  • Models 277RFS-3 & 277RBFS are especially made for Tape Binding

FEATURES

  • Narrow cylinder arm — 1-31/32" (50 mm) diameter (Model 277RBFS)
  • Horizontal axis rotary hook
  • Large bobbin available (Model 277RBFS)
  • Compound feed, walking foot mechanism assures even feeding of several plies or slippery material
  • Simple adjustment permits the raising and lowering of center foot which allows for sewing of different thicknesses of materials

ADDITIONAL INFORMATION

U.S. WARRANTY: 90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary. Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

SPECIFICATIONS

Number of Needles 1 (Single)
Feeding Mechanism Walking Foot
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 2200
Stitch Length 4 s.p.i. (6.5mm)
Work Space 10 5/32" x 4 11/32" (258 x 110mm)
Needle 135 x 17
Bobbin 18034 M
Needle Bar Stroke 1 5/16" (33.2mm)
Cylinder Diameter 1-31/32" Dia. (50mm)
