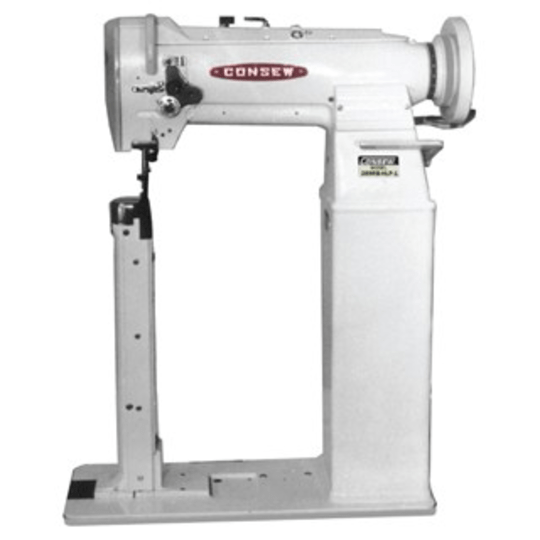

OVERVIEW
High Speed, Extra High Post Type, Single Needle, Drop Feed, Needle Feed, Walking Foot, Alternating Presser Feet, Lockstitch Machine
With: Centra-Lube Semi-Automatic Lubrication System, Large Vertical Axis Rotary Hook and Bobbin, Reverse Feed, Safety Clutch
APPLICATIONS
- For sewing medium to heavy weight fabrics, leather, canvas, vinyl, synthetics and various coated and laminated materials
- For stitching uneven, hollow, tubular and curved articles
- Designed for stitching such products as boots, shoes, gloves, luggage, handbags, overalls, raincoats, bags, umbrellas, awnings, covers, tarpaulins, tents, sports and camping equipment, wearing apparel, outdoor clothing, etc.
- Suitable for edge stitching operations
FEATURES
- Centra-Lube® semi-automatic lubrication system
- Oil fed take-up
- Extra high post
- Safety clutch prevents the hook from being damaged
- Large bobbin allows for longer operation
- Large vertical axis hook allows for use of thick thread and therefore ornamental stitching can be obtained
- Compound feed, walking foot mechanism assures even feeding of material
- Reverse stitching
- Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material
U.S. WARRANTY:
90 Days labor on defects in materials and workmanship.
** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.
Please review our Freight Shipping LTL Shipping Policies on our home page under "About us"
Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.
This item ships separately from other warehouses. Usually leaves the warehouse in 5-7 business days.
SPECIFICATIONS
Number of Needles 1 (Single) Feeding Mechanism Walking Foot Workspace Standard Workspace Standard or Full Function Standard Functions Speed, Max (S.P.M.) 2200 Clearence Under Presser Foot Hand 5/16" (8.5mm) Foot 5/8" (16mm) Stitch Length 4 s.p.i. (6.2mm) Needle 135 x 17 Bobbin Pre-Wound S and U Bed Size 7" x 20 3/8" (178mm x 518mm) Stitch Type 301 Needle Bar Stroke 1 13/32" (35.3mm) Hook 14119 Post Height 17 7/16" (443mm) Work Surface 2 1/8" x 2" (54mm x 51mm)
