Description
OVERVIEW

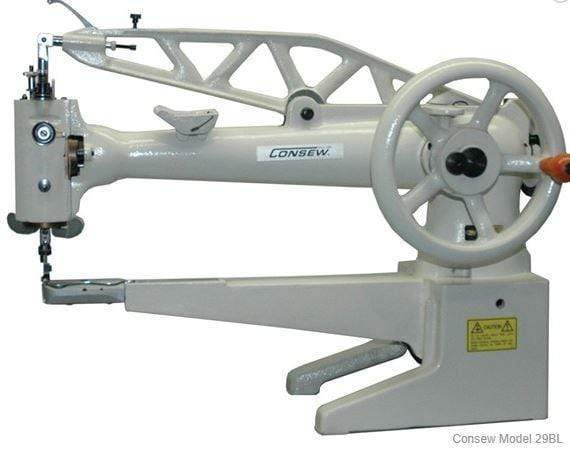

Single Needs, 12" or 18" Cylinder Arm, Shoe Repair and Mending, Lockstitch Machine
With: Oscillating Shuttle, Extra Small Cylinder Bed, Universal Upper Feed, Double Ended Needle Plate, Large Bobbin Available
APPLICATIONS
Repairing of leather materials and shoe uppers.
FEATURES
- Extra small cylinder bed
- Oscillating Shuttle
- Universal upper feed for stitching in any direction without turning work
- Handwheel can be mounted on front or right end of machine
- Wheel pulley "V" groove for motor drive
- Double ended needle plate with different size holes at back end to accommodate various size needles
- Adjustable thread take-up lever
- Adjustable presser foot pressure and thread tension
- Machine can be driven by foot treadle, hand crank or electric motor
Please Review our Freight Shipping
Click Here for Consew Manuals ( 29,29B,29L,29BL)
US Warranty 30 Days labor on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor
order Assembled for $300 more.
Included Accessories
- Instruction Manual
- Needles
- Bobbin
- Bobbin Winder
- Thread Stand
- Table, Stand and Motor
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Universal |
| Workspace | Long Arm |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 500 |
| Clearance Under Presser Foot | 13/32 s.p.i. (10.5mm) |
| Stitch Length | 3.5 s.p.i. (1-7mm) |
| Hook Size | Large |
| Work Space | 18" (460mm) |
| Width of Cylinder Bed | 1 5/32" (27.8mm) |
| Needle | 29x3, Style 3741 |
| Depth of Cylinder Bed | 1 3/32" (29.4mm) |
| Net Weight | 77 lbs. (35kgs) |
| Gross Weight | 88 lbs. (40kgs) |
| Total Carton Size | 5.3 ft3 (.15cbm) |
