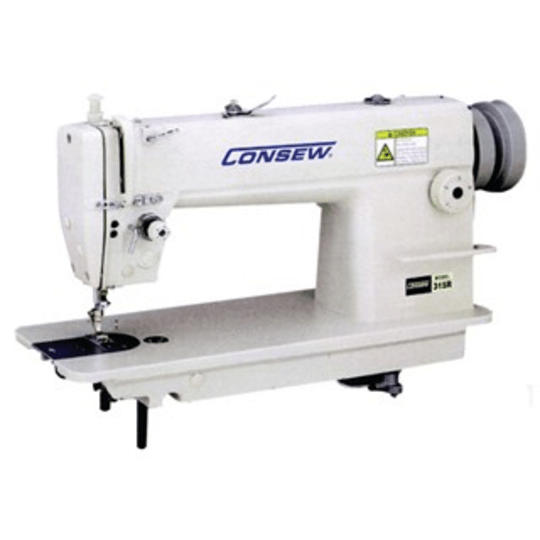

Consew Model 315RATCWL(E)-1


  • APPLICATIONS

    • For stitching light to medium weight fabric, knits, synthetics, vinyl, canvas, denim and coated and laminated material
    • Suitable for attaching pockets to shirts, sewing collars and cuffs, stitching skirts, blouses, dresses, raincoats, general wearing apparel

    FEATURES

    • High speed - 5000 S.P.M. for light to medium-weight materials
      4000 S.P.M. for medium to heavy-weight materials
    • Horizontal axis transverse rotary hook
    • Synchronized drop and needle feed assures even feeding of slippery and difficult to feed materials
    • Fully automatic lubrication with recirculating pump
    • For light to medium weight fabric

    SPECIFICATIONS

    Number of Needles 1 (Single)
    Feeding Mechanism Needle Feed
    Workspace Standard Workspace
    Standard or Full Function Auto Trimming, Backtack, Reverse
    Speed, Max (S.P.M.) 5000
    Clearence Under Presser Foot Hand 7/32" (5.5mm), Knee 9/16" (14mm)
    Stitch Length 6.4. s.p.i. (4mm)
    Work Space 10" (254mm)
    Needle 16 x 257
    Bobbin Pre-Wound L
    Bed Size 7" 18 7/8" (178mm x 479mm)
    Needle Bar Stroke 1 7/32" (30.7mm)
    Hook C-27
    Lubrication Fully Automatic
