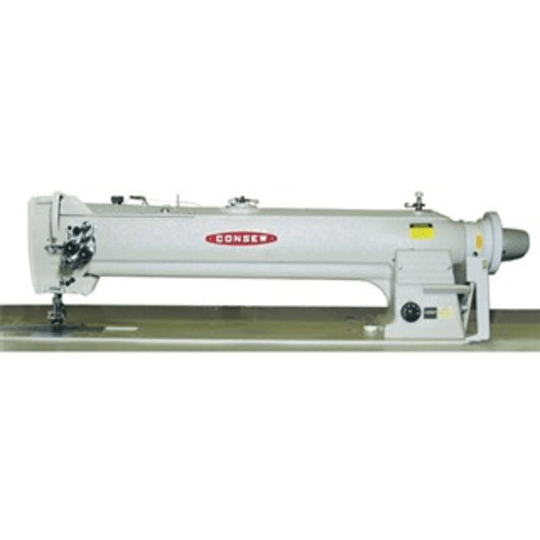

Consew Model 339RBATCWL(N)


Call 1-800-487-7397 for details.


APPLICATIONS

  • For sewing medium to heavy weight materials such as leather, vinyl, synthetics and laminated and coated materials.
  • Suitable for sewing items such as automobile upholstery tarpaulins, covers, awnings, tents, umbrellas handbags, luggage, travelware accessories, sports and camping equipment and wearing apparel outdoor clothing.

FEATURES

  • PEDAL OPERATION The operator has precise control of the motor through the convenient foot pedal.  Forward pressure controls speed and backward pressure automatically controls reverse stitching speed.
  • ADJUSTABLE PEDAL PRESSURE For ease of operation operator can simply adjust the spring position to meet the desired foot pressure, achieving extremely fast and accurate start-stop actions.  Linear speed control for accurate, predictable control.
  • UNBLOCKED HAND WHEEL The sewing machine's hand wheel is freely movable, even when the machine  is stopped. This allows easy threading and readily permits required adjustments for fittings.
  • ELECTRONIC CONTROLS Consew uses a rugged servo-motor.  The servo-motor affords precise control of all motor action, while allowing for additional sewing machine functions, such as trimming, foot lift, etc.
  • PRECISE NEEDLE POSITIONING A specially designed servo-motor ensures precise needle positioning and stopping accuracy, thereby helping to eliminate  one cause of needle breakage.
  • SWITCHING OF NEEDLE-UP/DOWN-STOP Either needle-up stop or needle-down stop can be selected intermediate of the end of the seam. (It may be convenient to have the machine stop with the needle in "down" position for operations where sewing will continue after adjusting the item or have it stop in the "needle-up" position when the work will be removed after each operation.)
  • AUTO BACKTACK BUTTON Conveniently located a few inches to the right of the needle, one touch initiates a programmable backtacking function. Push button switch reverse with safety lockout adjustment.

ADDITIONAL INFORMATION

SPECIFICATIONS

Number of Needles 2 (Double)
Feeding Mechanism Walking Foot
Workspace Standard Workspace
Standard or Full Function Auto Trimming, Backtack, Reverse
Speed, Max (S.P.M.) 3000
Stitch Length 2 1/2" s.p.i. (10mm)
Work Space 10" (258mm)
Needle 135 x 17
Bobbin Metal 15041
Pre-wound S or U
Bed Size 7" x 18 7/8" (178m x 477mm)
Stitch Type 301
Needle Bar Stroke 4 s.p.i. (8mm)
Standard Needle Spacing 1/8" (3.2mm) 1 1/2" (38.1mm)
Hook 15040
Foot Lift By Hand 25/64" (10mm)
By Knee 1/2" (13mm)
Electric 1 5/16" (33mm)
