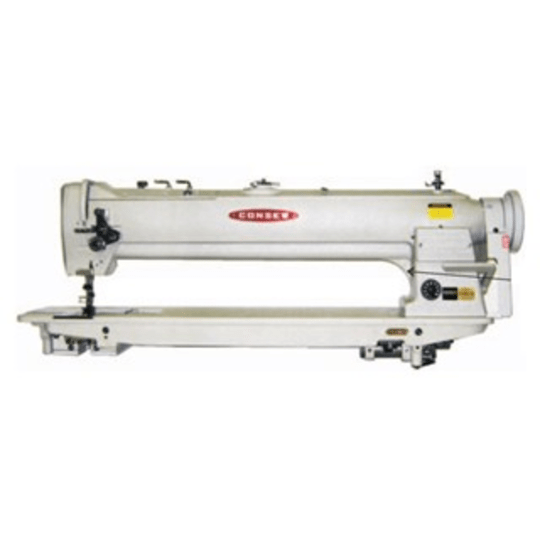

Consew Model 339RBL-25ATCL


Description

APPLICATIONS

  • For sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas, vinyl and various coated and laminated products
  • Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances, etc.
  • Suitable for double needle seaming, binding, taping and piping operations

FEATURES

  • Two needle mechanism readily makes two parallel lines of stitches
  • Compound feed, walking foot mechanism insures even feeding of material
  • Large hooks and bobbins assures longer operation between bobbin changes
  • Centra-Lube® semi-automatic lubrication system
  • Automatic hook lubrication
  • Oil fed take-up
  • Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material
  • Safety clutch protects the hooks from being damaged
  • Various needle gauges available
  • Synchronized puller available (add suffix -P)
  • Large Hooks and bobbins and reverse feed/long stitch - 2 1/2 s.p.i.

SPECIFICATIONS

Number of Needles 2 (Double)
Feeding Mechanism Walking Foot
Workspace Long Arm
Standard or Full Function Auto Trimming, Backtack, Reverse
Speed, Max (S.P.M.) 2400
Clearence Under Presser Foot 9/16" (14mm)
Stitch Length 2 1/2" s.p.i. (10mm)
Work Space 25" (640mm)
Needle 135 x 17
Bobbin Metal 15041
Pre-wound S or U
Bed Size 7" x 28 1/4" (177mm x 718mm)
Stitch Type 301
Needle Bar Stroke 1 5/16" (33mm)
Available Needle Spacings 1/8" (3.2mm) - 1 1/2" (38.1mm)
Standard Needle Spacing 1/4" (6.4mm)
Hook 15502
