Description

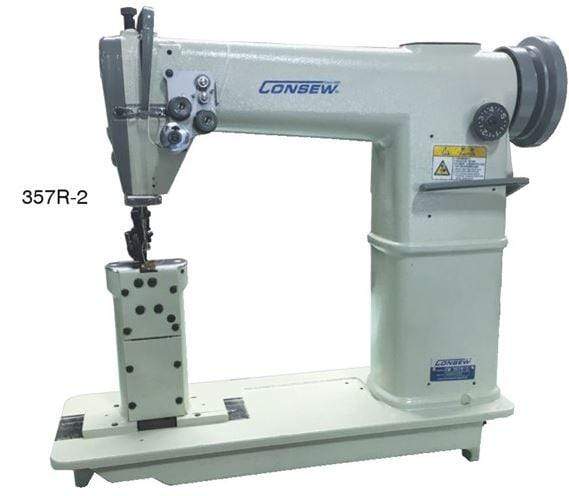

High Speed, Post Type, Two Needle, Drop Feed, Lockstitch Machine
With: Vertical Axis Hooks, Roller Presser Foot, Reverse Feed, Safety Clutch, Offset Needles – Narrow Gauges Only
APPLICATIONS
- For sewing light to medium weight fabrics, leather, canvas, vinyl, synthetics and various coated and laminated materials
- Suitable for stitching hollow, tubular and curved articles
- For stitching ornamental and functional two needle seams
- Designed for stitching such products as wearing apparel, shoes, boots, raincoats, foundation garments, luggage, handbags, travel ware accessories, leather goods, etc.
- Also used for attaching vamps and backstraps or inserting counters on heavy shoes
FEATURES
- Vertical axis hooks
- Drop feed
- Safety clutch mechanism prevents the hooks from being damaged
- Reverse feed for back stitching, tacking and seam reinforcing
- Stitches per minute – 3000*
- Roller presser foot allows turning of sharp corners and tight curves
- Flat presser foot available
U.S. WARRANTY:
90 Days labor on defects in materials and workmanship.
** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary. Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.
Please read our *Freight Shipping Polices on our main menu under "About Us"
SPECIFICATIONS
Number of Needles | 2 (Double) |
Feeding Mechanism | Drop Feed |
Workspace | Standard Workspace |
Standard or Full Function | Standard Functions |
Speed, Max (S.P.M.) | 3000 |
Clearence Under Presser Foot | 15/64" (6mm) |
Stitch Length | 5 s.p.i. (5mm) |
Work Space | 1 7/8" x 3 1/2" (48mm x 85mm) |
Needle | with Roller Presser Foot DPXF22 or 134S with Flat Presser Foot 135 x 7 |
Bobbin | Metal 10656 Pre-wound G |
Bed Size | 7" x 20 3/8" (177mm x 518mm) |
Stitch Type | 301 |
Needle Bar Stroke | 1 1/4" (32mm) |
Hook | 12530 |
Post Height | 7" (178mm) |
Needle Gauges Available | with Roller Presser Foot 3/6" - 3/32" (1.2mm-2.4mm) with Flat Presser Foot 1/16" - 1/2" (1.5mm - 12.7mm) |
