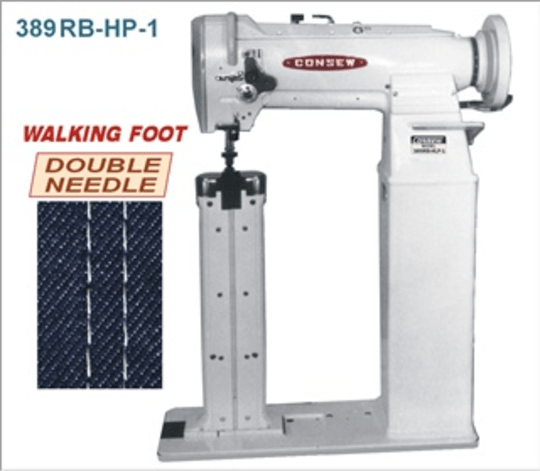

Description
APPLICATIONS
- For sewing medium to heavy weight fabrics, leather, canvas, vinyl, synthetics and various coated and laminated materials
- For stitching uneven, hollow, tubular and curved articles
- Designed for stitching such products as boots, shoes, gloves, luggage, handbags, overalls, raincoats, bags, umbrellas, awnings, covers, tarpaulins, tents, sports and camping equipment, wearing apparel, outdoor clothing, etc.
- Suitable for edge stitching operations
FEATURES
- Centra-Lube semi-automatic lubrication system
- Oil fed take-up
- Extra high post
- Two needle machine {1/4" gauge standard - other gauges available: 3/16" – 1" (4.7 - 25.4mm)}
- Safety clutch prevents the hooks from being damaged
- Large bobbins allow for longer operation
- Large vertical axis hooks allows for use of thick thread and therefore ornamental stitching can be obtained
- Compound feed, walking foot mechanism assures even feeding of material
- Reverse stitching
- Simple adjustment permits raising and lowering of the center foot which allows
ADDITIONAL INFORMATION
U.S. WARRANTY:
90 Days labor on defects in materials and workmanship.
** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary. Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.
Please see our *Freight Shipping Policies on main menu under "About Us"
SPECIFICATIONS
| Number of Needles | 2 (Double) |
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2200 |
| Clearence Under Presser Foot | Hand 5/16" (8.5 mm), Foot 5/8" (16 mm) |
| Stitch Length | 4.5 s.p.i. (5.5 mm) |
| Work Space | Surface 8" x 4" (54 mm x 101 mm) |
| Needle | 135 x 17 |
| Bobbin | Metal 15408, Prewound S and U |
| Bed Size | 7" x 203/8" (178 mm x 518 mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 1-13/32" (35.3 mm) |
| Available Needle Spacings | 3/16" – 1" (4.7 - 25.4mm) |
| Standard Needle Spacing | 1/4" (6.4mm) |
| Hook | 14505 |
| Post Height | 17-7/16" (443 mm) |
| Lubrication | Centra-Lube |
