Description
High Speed, Double Needle, Post Bed, Lockstitch Machine,
Drop Feed, Needle Feed
with Vertical Axis Rotary Hooks, Intermittent Wheel Feed,
Intermittent Positively Driven Roller Presser,
Simplified Semi-automatic Lubrication,
Anti-Friction Ball and Roller Bearings,
Built-In Bobbin Winder
APPLICATIONS
- Lower and driven presser wheel feeding action combined with needle feed provide powerful transport for slippery materials of any type as well as leather, vinyl and polyethylene plastics, oil cloth, just any material difficult to feed, coated and laminated fabrics.
- Suitable for stitching hollow, tubular and curved articles and climbing over thick sections always assuring constant stitch length.
FEATURES
- As many as 29 anti-friction ball and needle roller bearings (depending on model) for easy maintenance.
- Continuous lubrication from copious reservoir.
- Vertical axis rotating hooks.
- Triple feeding mechanism assures even feeding of difficult-to-sew materials.
MODELS

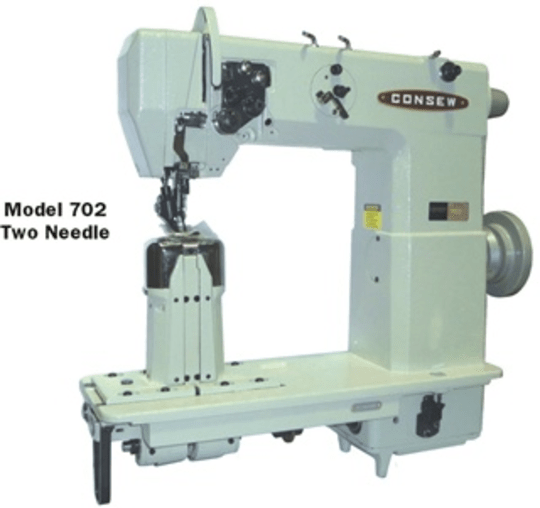

702 - Two needle, all other features same as Model 701
702ATCL - Fitted with automatic thread trimmer and presser lift
see also Model 701 for single needle versions
ADDITIONAL INFORMATION
U.S. WARRANTY:
90 Days labor on defects in materials and workmanship.
** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary. Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.
Please read our **Freight Shipping Polices on main menu under "About Us"
SPECIFICATIONS
Number of Needles | 2 (Double) |
Feeding Mechanism | Needle Feed |
Workspace | Standard Workspace |
Standard or Full Function | Standard Functions |
Speed, Max (S.P.M.) | 3500 |
Clearence Under Presser Foot | 9/32" (7mm) |
Stitch Length | 6 (4mm) |
Needle | 135x7 (cat.1955) |
Bed Size | 7"x20 3/8" (177x518mm) |
Stitch Type | 301 |
Needle Bar Stroke | 1 1/2" (38mm) |
Hook | 38032 |
Post Height | 7" (178mm) |
Work Surface | 2"x3 13/16" (52x97mm) |
Gauges | Standard 1/16" (1.6mm) |
Needle Gauges Available | 1/32" to 3/16" (0.8 to 4.8mm) |
