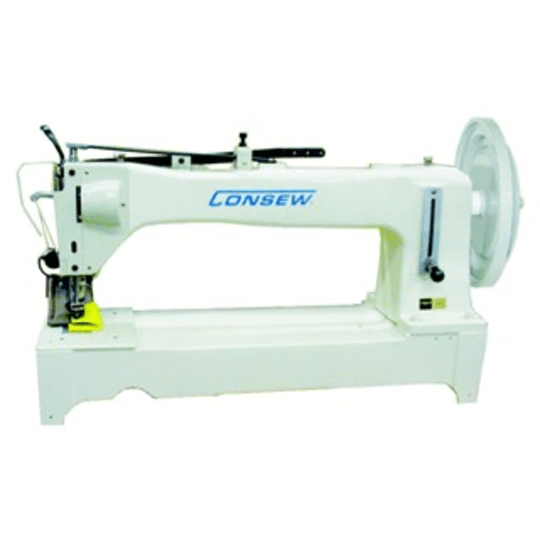

Machine comes Assembled with Air Foot Lift
***Special Order Machine *** Not eligible for return***
- Call for Current Pricing-1-800-487-7397
- For stitching extra heavy-weight materials
- Designed for such operations and products as safety and logging belts, cargo slings, buffing wheels, tents, sails, harnesses, tarpaulins and covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, book binding
- With: Extra Large, Long Beak, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-1/4" / 32mm), Two Row Feeder, Reverse Feed
FEATURES
- Syncronized upper and lower feeding mechanism assures uniform stitching
- Alternating presser feet
- Steel insert for take-up hinge
- Reverse stitching - hand or foot operated
- Stitch regulator - hand or foot operated
- Presser foot lift - hand or foot operated
- 1-1/4 inch presser foot lift
- Two row feeder
- Two stitches to the inch
- Stitches per minute - 550
- Extra large, long-beak oscilating shuttle, hook and bobbin
- Belt guard
Read our Freight Shipping Policies* Item Not eligible for Discount*
SPECIFICATIONS
Number of Needles 1 (Single) Feeding Mechanism Walking Foot Workspace Long Arm Standard or Full Function Standard Functions Speed, Max (S.P.M.) 550 Clearance Under Presser Foot 1 1/4" (32mm) Stitch Length 2 s.p.i. (13mm) Hook Size Work Space 25" (640mm) Needle 1000 or 1000H Bobbin Pre-Wound 41 Bed Size 10" x 26 1/4" (258mm x 665mm) Stitch Type 301 Weight 231 lbs. (105kg) Needle Bar Stroke 2 3/32" (53mm) Hook 35224
