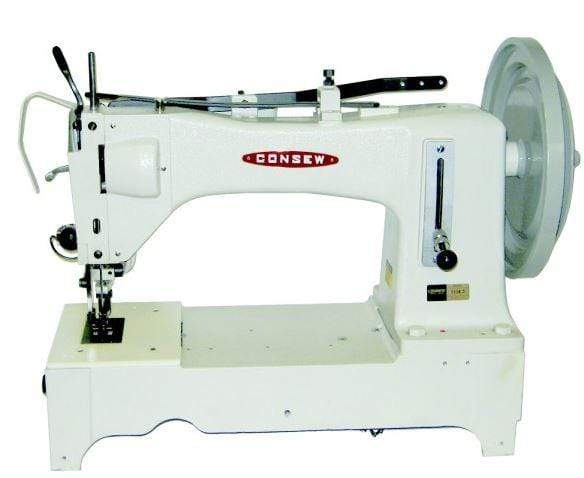

Consew Lockstitch Machines Consew Model 733R-5

Consew Model 733R-5- Extra Heavy Duty-Long Arm-Lockstitch Machine.

Regular price $ 8,799.00
/

Only 0 items in stock!

OVERVIEW

Extra Heavy Duty, Long Arm, Single Needle, Drop Feed, Alternating, Presser Feet, Lockstitch Machine.

With: Extra Large, Long Beak, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-1/4" / 32mm), Two Row Feeder, Reverse Feed

Also available: The new 733RB-6



APPLICATIONS

  • For stitching extra heavy-weight materials
  • Designed for such operations and products as safety and logging belts, cargo slings, buffing wheels, tents, sails, harnesses, tarpaulins and covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, book binding

For stitching extra heavy-weight materials. Designed for such operations and products as safety and logging belts, cargo slings, buffing wheels, tents, sails, harnesses, tarpaulins and covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, book binding

FEATURES

  • Synchronized upper and lower feeding mechanism assures uniform stitching
  • Alternating presser feet
  • Steel insert for take-up hinge
  • Reverse stitching - hand or foot operated
  • Stitch regulator - hand or foot operated
  • Presser foot lift - hand or foot operated
  • 1-1/4 inch presser foot lift
  • Two row feeder
  • Two stitches to the inch
  • Stitches per minute - 550
  • Extra large, long-beak oscilating shuttle, hook and bobbin
  • Belt guard

Freight Shipping Applies- Carefully read "Freight Shipping" page under Our "About Us".



US Warranty 90 Days labor on defects in materials and workmanship.

Non-US Warranty: 30 days parts and labor

SPECIFICATIONS

Number of Needles 1 (Single)
Feeding Mechanism Walking Foot
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 550
Clearance Under Presser Foot 1 1/4" (32mm)
Stitch Length 2 s.p.i. (13mm)
Hook Size Large
Work Space 16 1/4" (413mm)
Needle 1000 or 1000H
Bobbin Pre-Wound 41
Bed Size 10" x 26 1/4" (258mm x 665mm)
Stitch Type 301
Gross Weight 348 lbs. (158 kgs)
Weight 231 lbs. (105kg)
Needle Bar Stroke 2 3/32" (53mm)
Hook 35224
