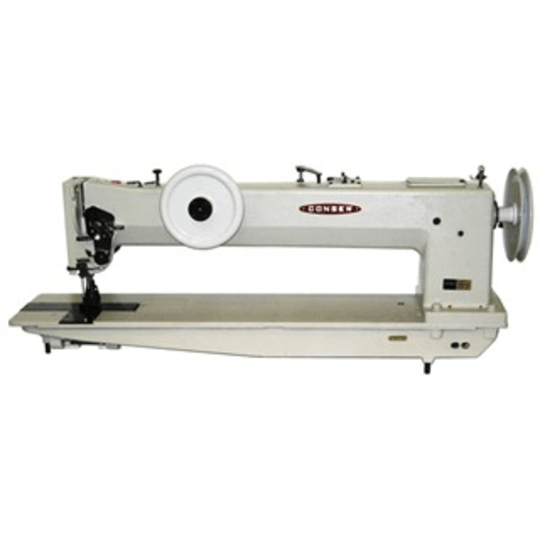

Consew Industrial Machines Consew Model 744R30P

Consew Model 744R30P

Regular price $ 0.00
/

Only 0 items in stock!

APPLICATIONS

  • Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
  • Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.
  • Suitable for stitching double seams and lap seaming.

FEATURES

  • Compound feed, walking foot mechanism insures positive and even feeding of the material.
  • Safety clutch protects the hooks from being damaged in case of accidental strain
  • Reverse feed operated by foot pedal
  • Centralized arm lubrication
  • Reservoir-oiled hooks with micrometric control valve
  • Presser foot locking lever
  • Built-in bobbin winder
  • Push button stitch regulator
  • Extra heavy duty top shaft with four ball bearings for support
  • Extra large bobbins and vertical axis hooks for use of heavy thread; also allows for long operation between bobbin changes
  • High lift
  • Front handwheel (on 30" arm) allows for easy positioning of the needle(s)
  • Factory-installed, bottom driven, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space.

SPECIFICATIONS

Number of Needles 2 (Double)
Feeding Mechanism Walking Foot
Workspace Long Arm
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 1500
Clearence Under Presser Foot 25/32" (20mm)
Stitch Length 25/64" (10mm)
Work Space 20" (508mm)
Needle 7x3 (DYx3)
Bobbin 70141
Bed Size 33 5/16" x 9 1/16" (846mm x 230mm)
Stitch Type 301
Hook 70140
