Consew Industrial Machines Consew Model 756R

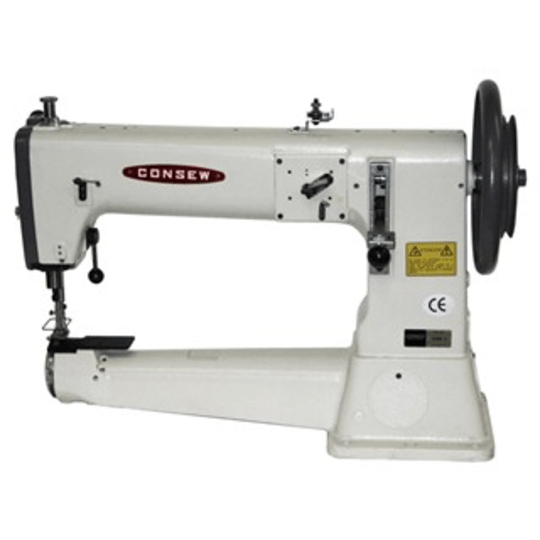

Consew Model 756R

Regular price $ 6,120.00
/

APPLICATIONS

  • Suitable for sewing heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
  • Appropriate for use in upholstery, footwear, leather, canvas industries
  • Designed for stitching such products as tents, sails, harnesses, tarpaulins, safety belts, parachutes, balloons, industrial bags, boots, book binding, auto, boat and furniture upholstery, sports and camping equipment, orthopedic appliances, suitcases, luggage,     ski boots, knapsacks, footwear and outerwear made of extra heavy duty materials
  • Recommended for sewing tubular and curved work
  • Designed for extra thick thread

FEATURES

  • Large oscillating shuttle hook
  • Extra long arm - 16½" (420mm) for R-3 version (15¾” -400mm for R version)
  • Reverse feed
  • Built-in bobbin winder
  • Cam take-up lever
  • Extra high presser lift for sewing extra heavy materials
  • Heavy balance wheel
  • A cloth plate for flat work available as optional equipment for all models
  • Triple Transport: bottom, top and needle feed (walking foot)

Ships Ground Freight Only- Please Review Our Shipping Policies

US Warranty 90 Days labor on defects in materials and workmanship.

Non-US Warranty: 30 days parts and labor

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

SPECIFICATIONS

Number of Needles 1 (Single)
Feeding Mechanism Walking Foot
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 1200
Stitch Length 2 1/2 s.p.i. (10mm)
Work Space 15 3/4" (400m)
Needle 7 x 3
Needle Bar Stroke 56 2 13/64"
Presser Lift 1" (25.4mm)
Cylinder Diameter 3 3/16" (81mm)
