Description
OVERVIEW

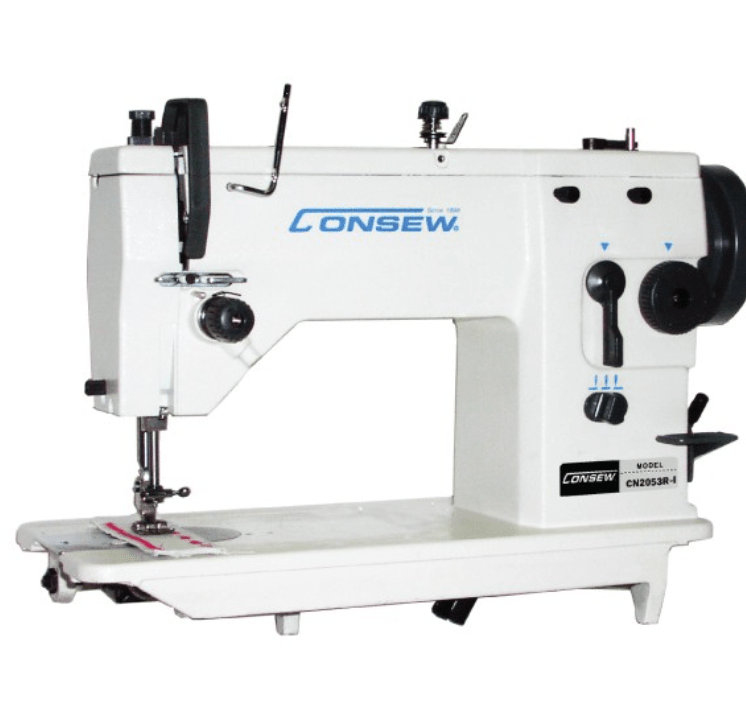

Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine
With: Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher, Built-In Bobbin Winder, Needle Position Adjustment, Metal Gears (Hardended Steel), Adjustable Reverse Stitch Length
APPLICATIONS
- For sewing light to medium heavy weight fabrics including clothing, shoes and caps, leather articles, bags and more
- For attaching lace, elastic band, bottom hemming, edge stitching, butted seaming, applique and similar operations
- Federal stitch type 304
- CN2053R-2A has Stitch type 308 (used to secure lines on parachutes)
CN2253R-1A for piping and cording. Top of material will show a double-needle 5 mm stitch, and bottom of material will show a zig-zag stitch
FEATURES
- Horizontal axis transverse rotary hook
- Dial zig-zag regulator
- Locking zig-zag width regulator
- Straight stitches when zig-zag set to "0" using straight stitch locking device
- Stitches per minute — up to 2500 *
- Reverse stitching
- Built-in bobbin winder
- Metal gears (hardened steel)
- Built-in free-hand monogramming lever
U.S. WARRANTY: 90 Days labor on defects in materials and workmanship. Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.
** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2500 |
| Clearance Under Presser Foot | 6/25" (6.4mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 8 5/16" (211mm) |
| Needle | 135 x 5 |
| Bed Size | 7" 15 11/16" (178mm x 398.5mm) |
| Stitch Type | 304 |
| Needle Bar Stroke | 1 6/25" (31.5mm) |
| Stitch Width, Max | 11/32" (9mm) |
