High‑Torque Double‑Needle Walking‑Foot, Ready to Sew
The Consew Premier P2339RBLH‑18 is a twin‑needle, compound‑feed (drop feed + needle feed + walking foot) industrial lockstitch built for control on demanding materials. This complete package ships with an assembled industrial table and a quiet, energy‑saving servo motor for precise low‑speed performance.
Why It’s a Workhorse
- Double‑needle (twin‑needle) lockstitch for parallel seams and topstitching.
- Compound / unison feed (drop + needle + walking foot) keeps layers moving evenly.
- Centra‑Lube semi‑automatic lubrication with oil pump & adjustable flow and upper oil sight glass.
- Large vertical‑axis hooks with top‑loaded, large bobbins (auto‑oiled).
- Reverse feed and barrel‑type stitch length regulator with lock.
- Quick tension release and locking slide plate for fast bobbin access.
- Safety clutch to protect hooks in case of jams.
Best For
Heavy canvas, leather, neoprene, upholstery and similar multi‑layer, hard‑to‑feed assemblies. Add the optional puller to assist with long seams and bulky work.
Specifications
Max speed Up to 2,600 SPM* (*depends on thread, material & operation) Stitch length (max) 2.8 s.p.i. (9 mm) Presser foot lift Hand: 5/16" (8 mm) | Knee: 33/64" (13 mm) Needle bar stroke 1‑27/64" (36 mm) Work space 9‑7/8" × 3‑15/16" (250 × 100 mm) Working height under arm Up to 6" (152 mm) Needle system 135×17 (two needles) What’s Included

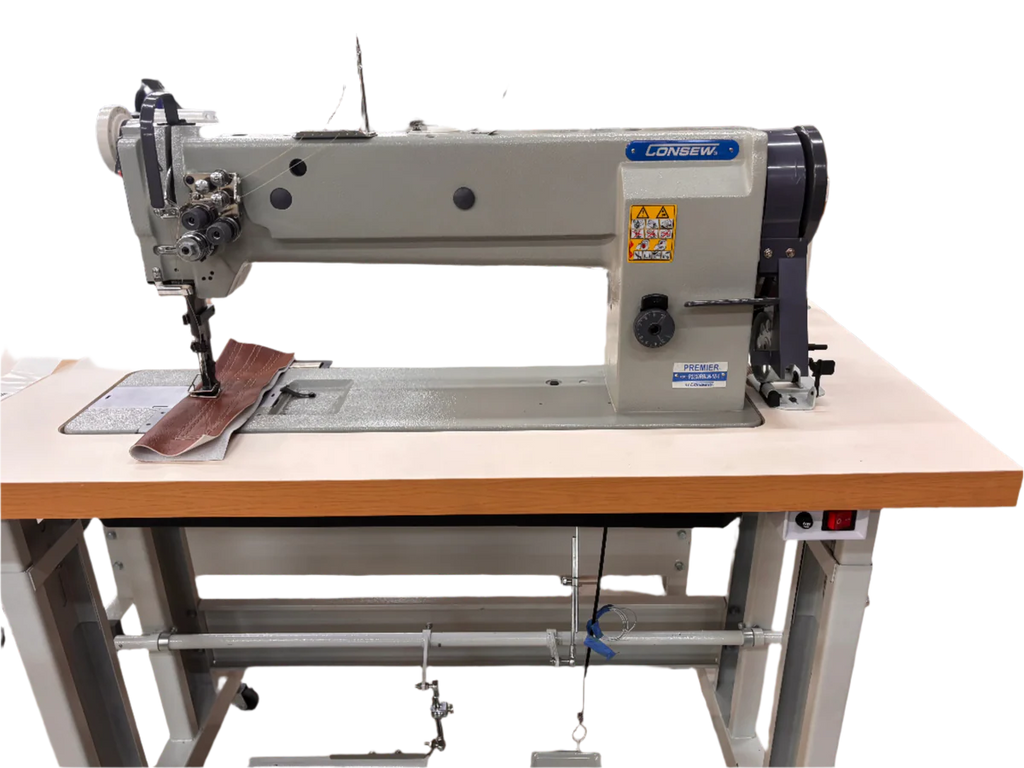

- Consew Premier P2339RBLH‑18 machine head
- Factory‑assembled industrial table
- Servo motor (installed)
Setup & Support
Send us a note with your material and thread specs—our techs can pre‑set the machine accordingly before shipment for a faster start.
Notes
Product video may show the machine with the optional puller, which is not included by default.
FAQs
Q: Can it handle leather and upholstery vinyl?
A: Yes—its compound feed and walking foot provide consistent traction on leather, canvas, neoprene, and upholstery work.Q: Does this listing include the table and motor?
A: Yes—this is a complete set with the industrial table assembled and a servo motor installed.Q: What needles does it use?
A: The machine uses the 135×17 needle system (two needles).
