Description

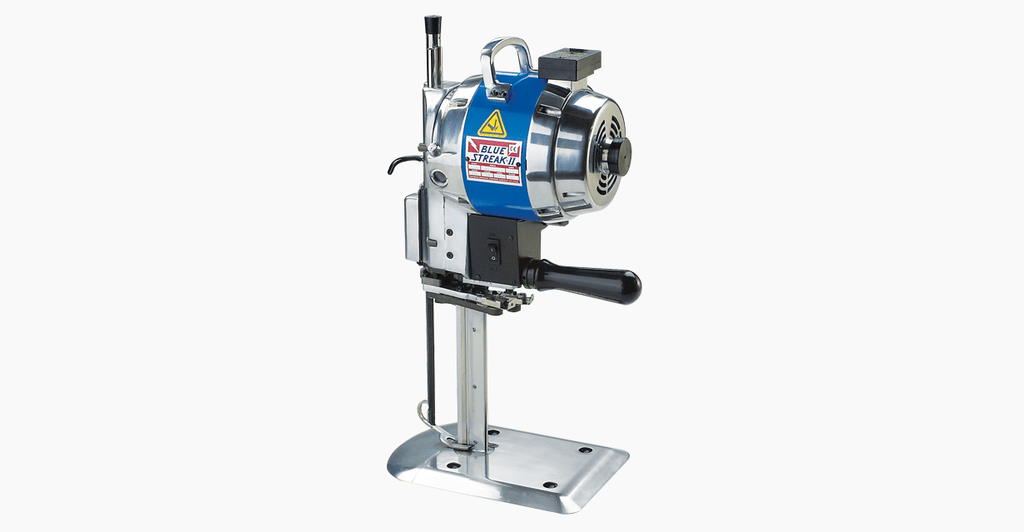

With versatility unmatched by any other straight knife, the Blue Streak II® is the obvious choice when one cloth cutting machine is required to perform many tasks.
The machine features a low profile, polished, streamlined baseplate is designed to reduce friction and distortion in the lay, regardless of the number of plies. Constructed of superior quality materials to ensure durability and longevity.
The Eastman 629X Blue Streak II is available in eight sizes, four strokes, and a multitude of electrical specifications.
Eastman has manufactured the highest quality, longest lasting and simply the best cloth cutting machines for over one century. Don't compromise quality, use Eastman Cutting Machines!
- Power to weight ratio offers easy handling and maneuvering, even for the tightest radius
- Low-profile baseplate and narrow silhouette standard make cutting of intricate patterns and tight turns simple
- Perfect fit and continuous running with cross heads, crank and knife slides that are machined to a tolerance within .0005″(0.0013cm)
- Simple handling of the machine due to its low center of gravity
- Low maintenance requiring only daily lubricating with the easy-to-use One Shot single-reservoir oiling system
- Intricate Pattern/Straight Line Multi-ply Cutting - With versatility unmatched by any other straight knife, the Blue Streak II is the choice when one machine is required to perform many tasks.
- Accuracy - Cutting of intricate patterns and tight turns due to the low-profile base plate and narrow silhouette standard.
- Continuous, Smooth Running - Perfect fit and continuous running with cross heads, crank and knife slides that are machined to a tolerance within .0005 inches.
- Efficiency - Simple handling of the machine due to its low center of gravity and the best power-to-gravity weight ratio in the industry.
- Low Maintenance - Requiring only daily lubrication with the easy-to-use One Shot single-reservoir oiling system.
- Durability - Built with the highest grade materials available. Our most popular straight knife garment cutting machine.
Eastman 629 Blue Streak II Specs:
Additional Information
| Motors |
110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380V, 3ph, 50Hz Standard: Single Speed Optional: Dual Speed |
|---|---|
| Horsepower |
.65hp, 1ph .93hp, 3ph |
| Weight |
34 lbs. (15.4kg) |
| Blades |
Standard: Carbon Steel Optional: High Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip |
| Belts |
Standard: Medium Grit Optional: Fine, Coarse, Rough |
| Options |
Micro Fog, Plastic Master, Auto Stop Note: Autostop, Micro Fog and Plastic Master are only available in 6 in. and 8 in. |
| Stroke Sizes |
1.125 in. (2.86cm) 1.25 in. (3.18cm) 1.5 in. (3.81cm) 1.75 in. (4.45cm) |
| Blade Sizes |
5 in. (12.7cm) 6 in (15.2 cm) 7 in. (17.7 cm) 8 in. (20.3 cm) 9 in. (22.8 cm) 10 in. (25.4 cm) 11.5 in. (29.2 cm) 13 in. (33 cm) |
| Cutting Capacity |
3.5 in (8.9cm) 4.5 in. (11.4cm) 5.5 in (13.9cm) 6.5 in (16.5cm) 7.5 in. (19.1cm) 8.5 in. (21.5cm) 10 in. (25.4cm) 11.5 in. (29.2cm) |
Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
Motors
110v, 1ph: Available
220v, 1ph: Available
220v, 3ph: Available
380v, 3ph: Available
Single Speed Standard
Dual Speed Optional
Blade Types
High Speed Steel: Standard
Carbon Steel: Optional
Teflon Coated: Optional
Wave Edge: Optional
Wave Groove: Optional
Round Tip: Optional
Angled Tip: Optional
Belt Types
Fine: Available
Medium: Standard
Coarse: Available
Rough: Available
Waterproof: Available
Weight 34 lbs. (15.4kg)
Horsepower .65hp, 1ph; .93hp, 3ph
Blade Size
(inches): 5", 6", 7", 8", 9", 10", 11.5", 13"
(cm): 12.7cm, 15.2cm, 17.7cm, 20.3cm, 22.8cm, 25.4cm, 29.2cm, 33.0cm
Cutting Capacity
(inches): 3.5", 4.5", 5.5", 6.5", 7.5", 8.5", 10", 11.5"
(cm):8.89cm, 11.4cm, 13.9cm, 16.5cm, 19.1cm,21.5cm, 25.4cm, 29.2cm
Stroke Size
(inches): 1.125", 1.25", 1.5", 1.75"
(cm): 2.86cm, 3.18cm, 3.81cm, 4.45cm
Micro Fog Option
Available
Plastic Master Option
Available
Regular Ergo Handle Option
Available
Cushion Ergo Handle Option
Available
Autostop Option
Available
