Description

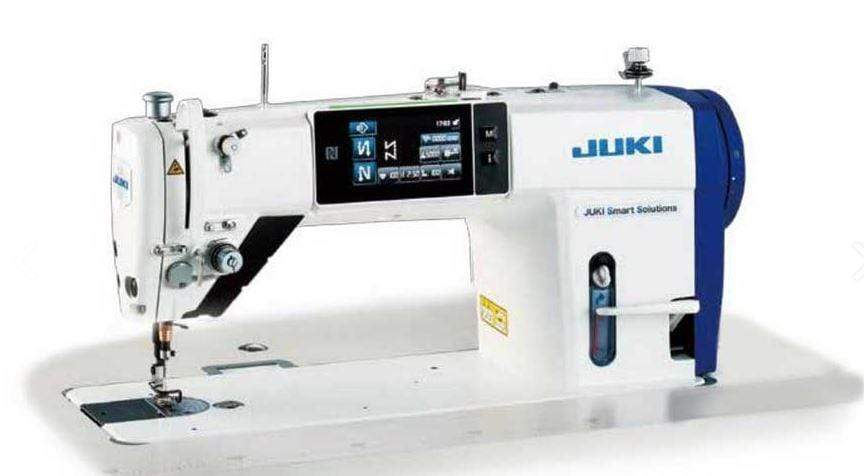

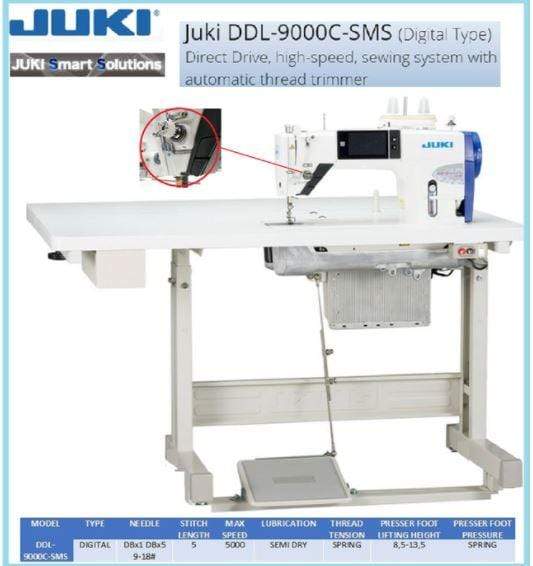

MODEL | DDL-9000C-FMS | DDL-9000C-SMS |
---|---|---|

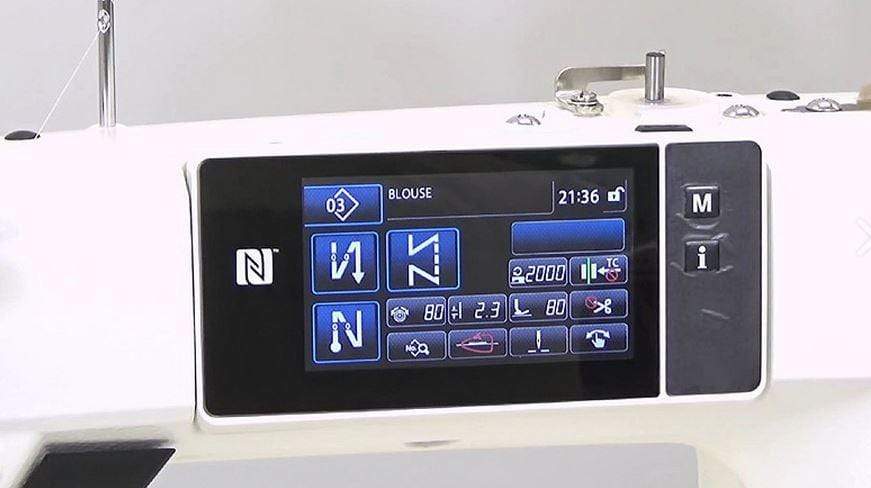

Type | Full Digital Type - Adoption of a 4.3-inch large color liquid crystal touch panel ensures easy operation. The touch panel is provided with JUKI's unique intelligent sewing system features. | Digital Type - Adoption of a black-and-white liquid crystal switch panel ensures easy operation. Since, unlike the CP panel, the black-and-white liquid crystal panel provides verbal explanation of its operation, it is easier for the operator to understand how to operate it |
Digital Feed (Horizontal Direction) | Yes | Yes |
Digital Feed (Vertical Direction) | Yes | Yes |

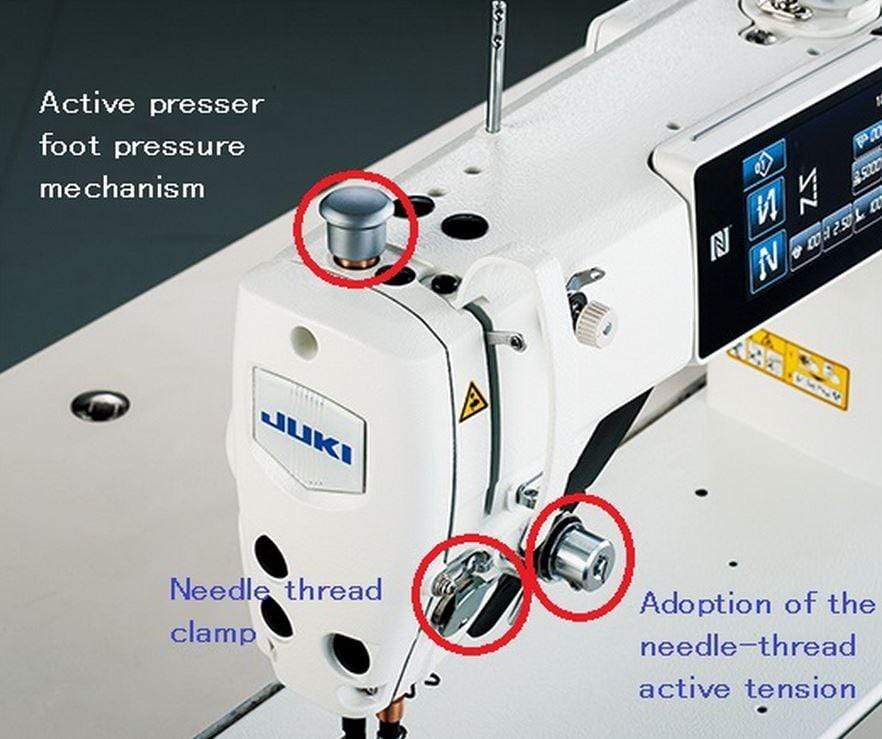

Active Presser Foot | Yes | No |
Active Tension | Yes | No |
Support To An Android Tablet | Yes | Yes |
Network | Yes | (Support through and Android tablet only) |
Shorter-Thread Remaining Type Thread Trimming | Yes | Yes |
Color Touch Panel | Yes | No - Black and White |
Application | Medium-weight | Medium-weight |
Lubrication | Semi-dry | Semi-dry |
Max. Sewing Speed | 5,000sti/min*1 | 5,000sti/min*1 |
Hand Switch | Provided as standard (At the time of shipment : Hand switches are assigned respectively with the touch-back switch function and the one-touch changeover switch function.) 5mm | Provided as standard (At the time of shipment : Hand switches are assigned respectively with the touch-back switch function and the one-touch changeover switch function.) 5mm |
Max. Stitch Length | 5mm | 5mm |
Thread Trimming Method | Double-edge rotary system | Double-edge rotary system |
Needle Bar Stroke | 30.7mm | 30.7mm |
Feed Dog Height | 0.8mm | |
Needle Thread Tension | Active tension | Spring Type |
Presser Foot Pressure | Electronic control | Spring Type |
Lift Of The Presser Foot | By hand : 5.5mm, By knee : 15mm Auto : 1st stage 5.0 mm (*0.1~8.5mm), 2nd stage 8.5 mm (*8.5mm~13.5mm) * Adjustable on the operation panel | By hand : 5.5mm, By knee : 15mm Auto : 1st stage 5.0 mm (*0.1~8.5mm), 2nd stage 8.5 mm (*8.5mm~13.5mm) * Adjustable on the operation panel |
Needle*3 | DB×1・DB×5(#11), #9~18(Nm65~110) | DB×1・DB×5(#11), #9~18(Nm65~110) |
Bobbin Thread Winder | Built in the top of machine head (provided with the bobbin thread retaining plate) | Built in the top of machine head (provided with the bobbin thread retaining plate) |
Lubricating Oil | JUKI New Defrix Oil No. 1 or JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7) | JUKI New Defrix Oil No. 1 or JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7) |
Size Of Bed | 517×178mm(distance from needle to machine arm:303mm) | 517×178mm(distance from needle to machine arm:303mm) |
Machine Head Drive | Compact AC servomotor (400W) that is directly connected to the main shaft (direct-drive system) | Compact AC servomotor (400W) that is directly connected to the main shaft (direct-drive system) |
Power Consumption | 520VA | 520VA |
Net Weight | Machine head: 40.5kg(with AK-154) or 90 lbs. | Machine head: 40.5kg(with AK-154) or 90 lbs. |
Warranty | 90-days on mechanical components, 1 year on electronics. | 90-days on mechanical components, 1 year on electronics. |

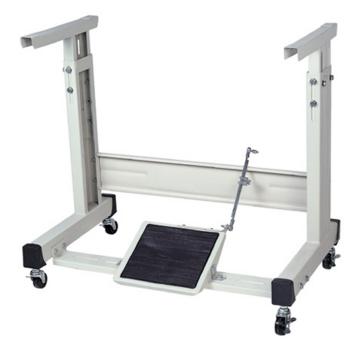

OPTIONAL T-LEG TABLE STAND WITH WHEELS UPGRADE

Features:
- Adjustable Height
- Caster Wheels
- Heavy Duty Steel Construction
