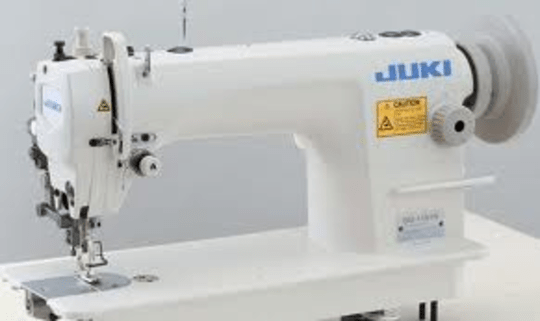

Walking Foot Top & Bottom Feed Industrial Sewing Machine

Higher lift of the presser foot:

The lift of the presser foot, by the knee lifter, is as high as 15 mm so as to support processes which require a higher lift of the presser foot, such as piping and tape-attaching.





The maximum stitch length is 9mm:

With its stitch length being as large as 9 mm, the machine is applicable to a broader range of sewing processes.



The double-capacity hook is provided as standard:

The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency

Automatic lubricating mechanism:

A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable.







The top feed mechanism employs a grease tank and oil wick lubrication mechanism.

The machine achieves low-vibration and low-noise:

The machine head is designed to achieve optimum balance, thereby reducing vibration and noise. The machine affords the operator a comfortable working environment.

Excellent operability:

The stitch pitch can be adjusted in both the normal and reverse directions. The height and inclination of the feed dog can be adjusted. The amount of the alternating vertical movement of the walking foot and presser foot is adjustable in a range from 2 to 5mm according to the height of a multi-layered section of material. The horizontal feed cam, top and bottom feed cam and top feed cam can be adjusted after openning the rubber caps ( three caps ) on top of the machine head.

Model name	DU-1181N
Max. sewing speed	2,000sti/min
Max. stitch length	9mm
Presser foot	By knee: 15mm
Alternating vertical movement	2～5mm
Needle	DP×17 (#21), #14~#23
Thread	#40~#8, B33~B92, Nm=90/3~30/3
