With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness. The machine's rectangular feeding motion promises the consistent feeding of materials of all thicknesses without stitch gathering.
Features:
Single Needle
Unison Feed
Needle Feed And Walking Foot
2500 Stitches Per Minute
New Rectangular Feed Prevents Gathering
Handles Heavyweight Materials

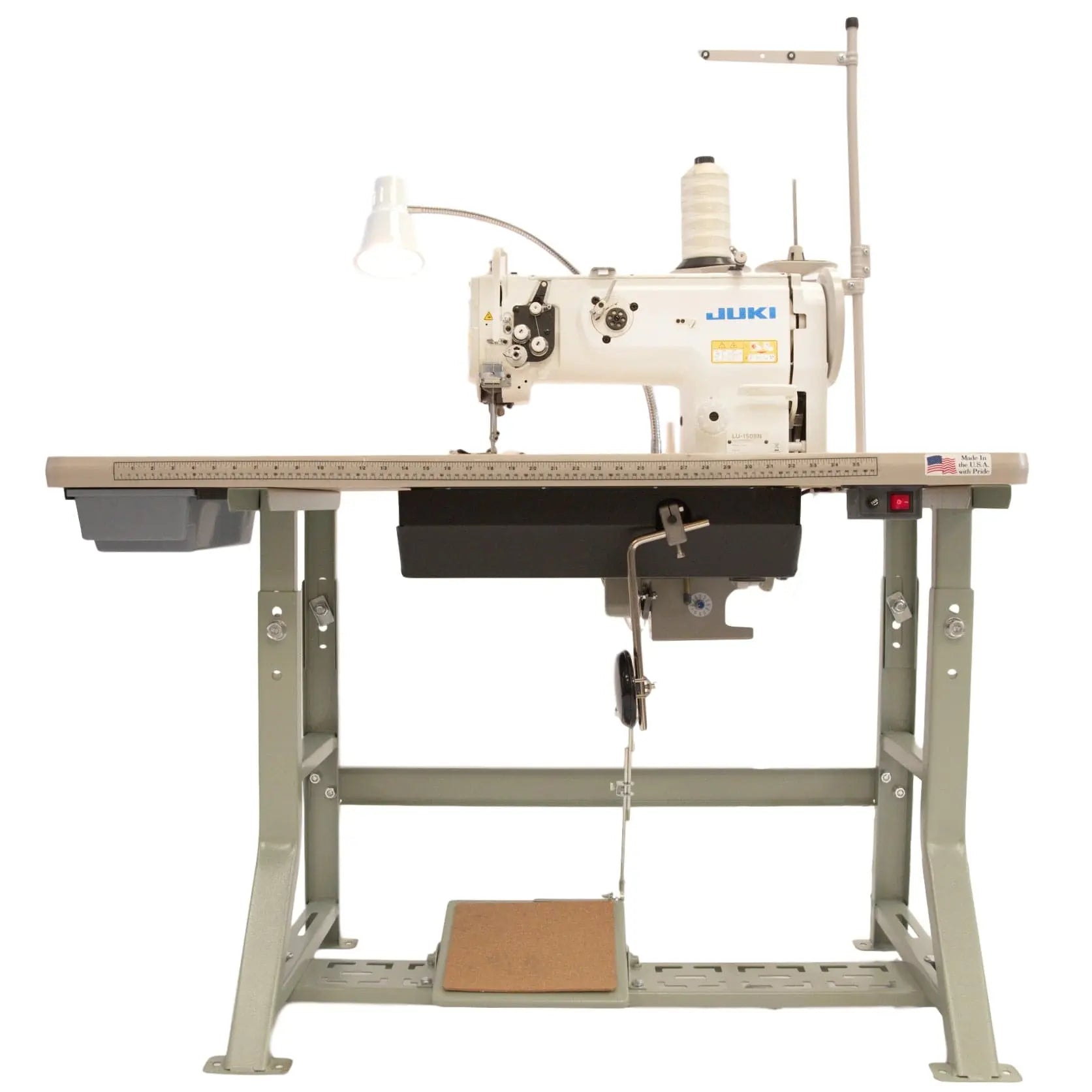

Industrial Sewing Machine
Specifications:
New mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness
without the risk of stitch gathering
Reduced lift of feed dog helps prevent the material from flopping and reduces operating noise and
vibration
Compared with elliptical feed, rectangular feed helps reduce gathered stitches
With adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism and a
unison feed mechanism helps feed heavyweight materials powerfully and smoothly
Well tensed seams are consistently produced without pitch errors
With its maximum stitch length of 9 mm, the machine can be applied to a broader range of uses
Stitch length can be easily selected by the stitch dial
Many improved features offer enhanced operability such as an easy to Observe area around the needle,
placement of bobbin winder on the front face, and a large hand wheel
Knee-lifter mechanism built-in to bed reduces pressure required to operate the knee-lifter
Full open type top design makes it possible to fully open the top of the machine arm and helps make
adjustment easy without tilting the machine head
Alternating vertical movement mechanism prevents irregular stitches
High 16 mm presser foot lift enables easy material handling
Since machine incorporates a vertical-axis double-capacity hook, the frequency of bobbin thread
replacement is reduced, further increasing efficiency
If thread gets caught in the hook, the safety device is automatically engaged, preventing possible hook
damage
Pressing the reset button will immediately return the machine back to the normal state
Maximum stitch length: 9 mm
Needle bar stroke: 36 mm
Alternating vertical movement: 2.5 mm - 6.5 mm
Thread take-up: slide type
Hook: Vertical-axis, double-capacity hook
Needle: 135 x 17 Nm 160
Thread: #30 #5, B46, B138
