Product Overview

Building on the success of the Husqvarna VIKING Jade 35, the Designer Quartz 29 introduces significant upgrades. With its intuitive 7-inch color touch display, Wi-Fi connectivity, and mySewnet Vault integration, this machine takes creativity to the next level. Effortlessly transfer embroidery files via Wi-Fi or USB and edit projects across your devices.

Key Features

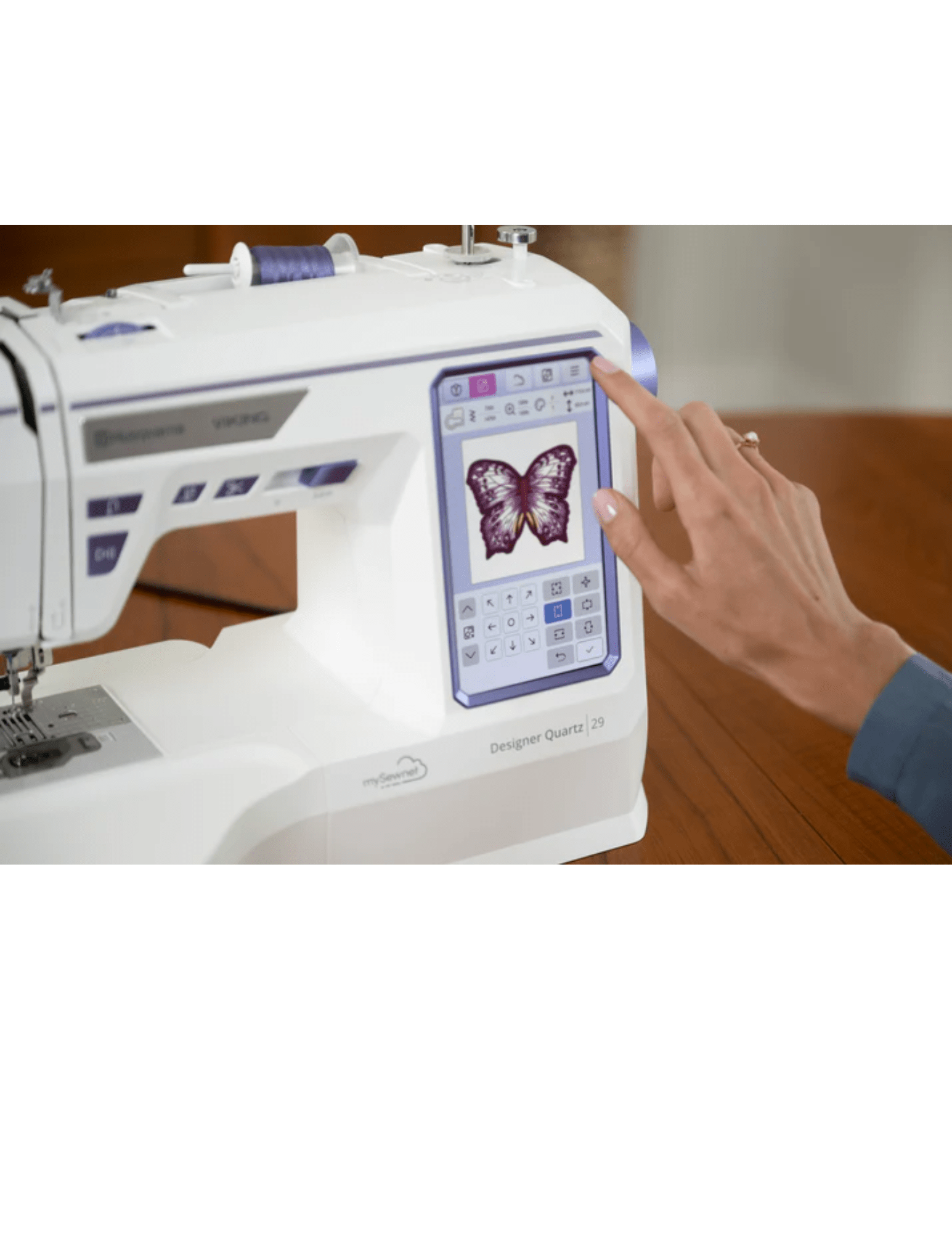

• Large 7-Inch Color Touchscreen: Provides intuitive operation, allowing you to easily adjust patterns, rotate, mirror, and resize designs.
• mySewnet™ Connectivity: Seamlessly transfer embroidery files wirelessly from your PC, smartphone, or tablet.
• Embroidery Area: The 170mm x 100mm workspace accommodates small to medium projects with ease. Additional optional hoops are available for enhanced versatility.
• Integrated Needle Threader: Simplifies threading with one simple lever movement for efficiency and convenience.
• Upper and Lower Thread Monitors: Alerts notify you when the thread is running low, ensuring smooth sewing and embroidery processes.
• High Sewing and Embroidery Speeds: Achieve up to 850 stitches per minute for sewing and 450 stitches per minute for embroidery.

Sewing Features

• 250 Built-in Stitches and 4 Fonts: Customize your projects with a wide range of decorative and functional stitches.
• Perfect Buttonholes: Automatic settings ensure consistently high-quality buttonholes every time.
• Free-motion Sewing: Create unique quilting effects by lowering the feed dog and attaching the embroidery foot.
• 29 Needle Positions: Achieve precision for topstitching, zippers, and piping with adjustable stitch width and length.
• Automatic Thread Cutting: Saves time and improves efficiency with one-touch trimming of upper and lower threads.

Embroidery Features

• Comprehensive Editing Tools: Customize designs with rotation, mirroring, resizing, and repositioning options directly on the touchscreen.
• Over 180 Built-in Designs and 10 Fonts: Access a vast library of embroidery patterns and fonts to personalize your projects.
• Real-time Color Visualization: Monitor your progress stitch-by-stitch with realistic visuals on the color touchscreen.
• Perfect Placement Tools: Corner symbols and point control ensure exact design placement on your fabric.
• Compatible .VP3 File Format: Use versatile embroidery files for endless design possibilities.

Top Features

• Large Color Touchscreen: A 7-inch screen provides an intuitive interface for easy operation, ensuring full control over your projects.
• Personalized Designs: Easily customize designs with the touch of a button, including thread color adjustments for unique creations.
• Integrated Needle Threader: Simplify threading with a lever movement, saving time and effort.
• Thread Monitors: Alerts for upper and lower thread levels ensure uninterrupted sewing and embroidery.
• Speed Control: Adjustable sewing and embroidery speeds, with a maximum of 850 stitches per minute for sewing and 450 for embroidery.
• Wi-Fi Connectivity: Transfer embroidery files wirelessly via mySewnet™ or use the USB port for traditional transfers.

Sewing Features

• 250 Built-in Stitches and 4 Fonts: Explore a wide variety of decorative and functional stitches for endless creative options.
• Perfect Buttonholes: Automatic buttonhole settings ensure consistent results every time.
• Free-motion Sewing: Create custom quilting effects with ease by lowering the feed dog and using the embroidery foot.
• 29 Needle Positions: Achieve precision for zippers, topstitching, and piping, with up to 7mm stitch width and 5mm stitch length.
• Automatic Thread Cutting: Convenient thread trimming at the touch of a button for efficiency.

Embroidery Features

• Generous Embroidery Area: A 170mm x 100mm embroidery space accommodates small to medium-sized projects effortlessly.
• Real-time Color Chart: Monitor your embroidery progress with realistic, stitch-by-stitch visuals on the touchscreen.
• Editing Options: Rotate, mirror, resize, and reposition designs directly on the touchscreen.
• 180+ Embroidery Designs and 10 Fonts: A vast library of built-in designs and fonts enables creative flexibility.
• Versatile .VP3 File Format: Compatibility with .VP3 files expands your embroidery possibilities.

General Specifications

• Weight: 28.7lbs (13 kg)
• Size: 23" x 16.5" x 18.9" (60 × 42 × 48 cm)
• Screen Size: 7" color touchscreen
• Sewing Space: 6.2" (160mm)
• Machine Dimensions: 17.7" x 12" x 8" (W: 45 cm, H: 30.5 cm, D: 20.5 cm)
• Weight of Embroidery Module: 5lbs (2.3 kg)

Sewing Specifications

• Total Number of Sewing Stitches: 250
• Sewing Alphabets: 4
• Zigzag Stitch Width Maximum: 7 mm
• Straight Stitch Length Maximum: 5 mm
• Maximum Sewing Speed: 850 stitches/minute
• Sewing Speed Regulation: Foot control and machine-based regulation
• Needle System: 130/705H
• Needle Positions: 29 adjustable levels
• Needle Position Up/Down: Yes, with button control
• Needle Threader: Mechanically manual
• Free Arm: Yes
• Raise/Lower Presser Foot: Standard, mechanical by hand
• Thread Monitoring: Upper thread monitor
• Auto Thread Cutter: Electronic thread scissors

Embroidery Specifications

• Maximum Embroidery Area: 6.6" x 3.9" (170 x 100 mm)
• Embroidery Speed: 450 stitches/minute
• Free-Arm Embroidery: Not available
• File Format: .VP3
• Pattern Transfer: USB stick or mySewnet
• Integrated Embroidery Patterns: Over 150
• Integrated Embroidery Alphabets: 10
• Combine Embroidery Patterns: Yes
• Software Included: 90-day trial subscription to mySewnet Platinum

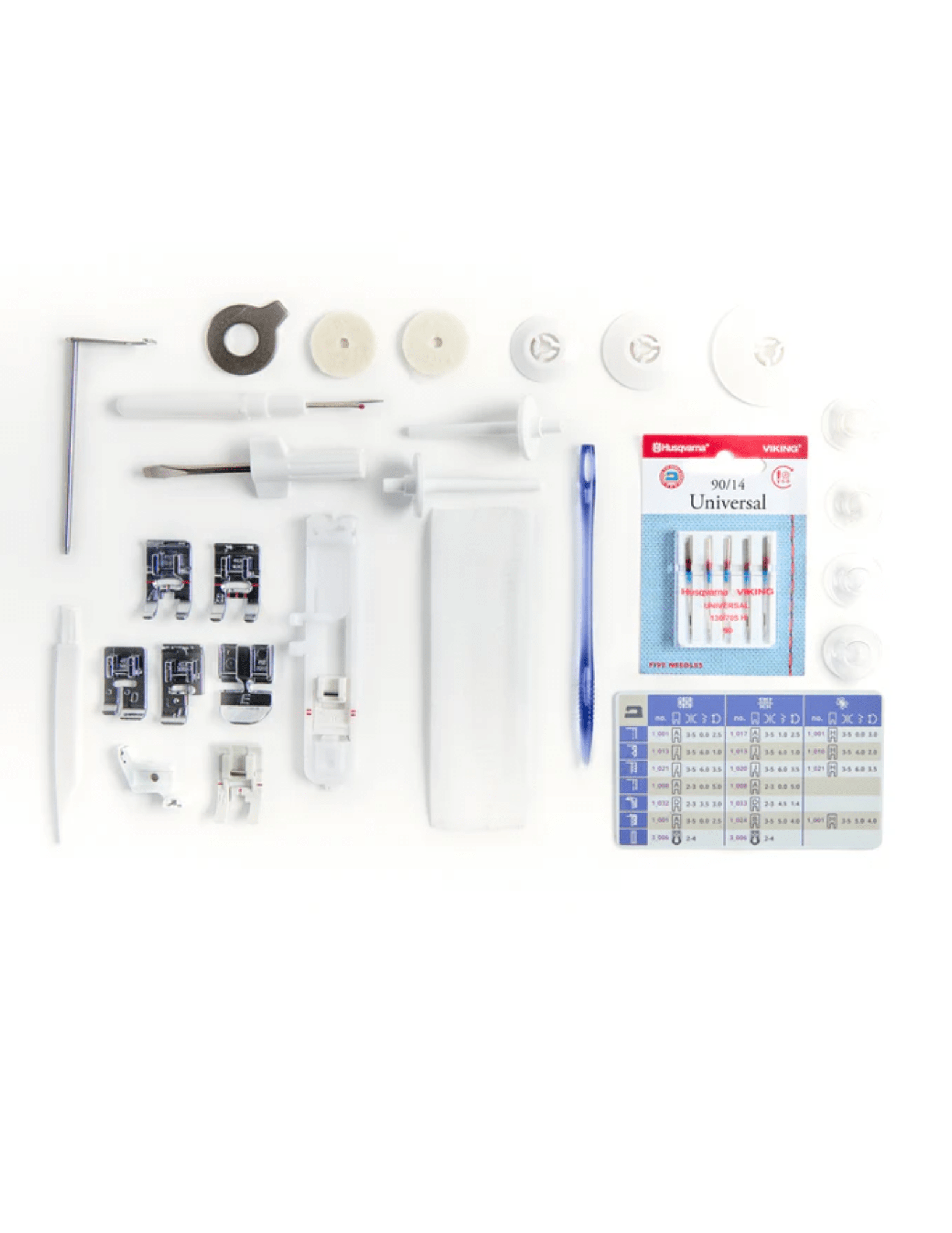

Included Accessories

• Thread Spool Net: Keeps thread secure during sewing and embroidery.
• Leadership Aid: Provides added stability and support for your projects.
• Screwdriver: For easy adjustments and maintenance.
• Felt Disc: Ensures smooth operation of thread spools.
• Edge/Quilt Guide: Ideal for precise quilting and edge stitching.
• Vertical Spool Pin: Facilitates easy thread handling during use.
• Seam Ripper: Removes stitches effortlessly for corrections and alterations.
• Brush (for Cleaning the Conveyor): Keeps the machine free of lint and debris.
• Coils (2): Extra bobbins for extended sewing sessions.
• Screwdriver for Needle Plate: Allows quick and easy needle plate changes.
• Spool Guide Discs:
• Small
• Medium
• Large
• Foot Control: Regulates sewing speed for precise operation.
• Power Cord: Provides reliable power for your machine.
• Needles: A set of needles suitable for various projects.
• Embroidery Frames:
• Standard Embroidery Frame
• Embroidery Frame (170 x 100 cm)
• Sewing Feet (5):
• Buttonhole Foot with Slide
• Zipper Foot
• Application Foot
• Straight Stitch / Patchwork Foot
• Embroidery Foot
• Embroidery Software: 90-day trial subscription for mySewnet Platinum.
