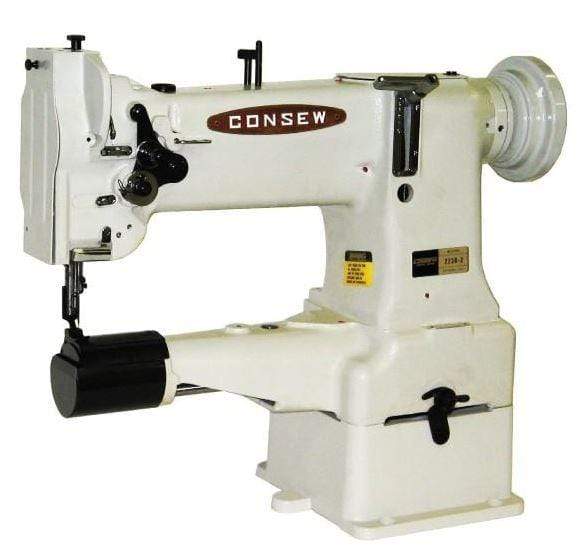

Consew Model 223R-2-High Speed, Cylinder Arm, Single Needle, Drop Feed Needle Feed, Lockstitch Machine

Head Only: Yes Please(-$250.00)
Sale price$ 2,794.00


With: Vertical Axis Rotary Hook, High Lift, Reverse Feed, Safety Clutch


  • For sewing medium to medium-heavy weight fabrics, leather, canvas, vinyl, synthetics and various laminated and coated materials
  • Designed for stitching tubular and curved work
  • Suitable for sewing such products as caps, cushions, boots, shoes, auto, boat and furniture upholstery, boat covers, sails, awnings, tents, light tarpaulins, camping equipment, luggage, travel ware accessories, wearing apparel, coats, etc.


  • High lift
  • Vertical axis rotary hook
  • Cylinder arm
  • Stitches per minute - 3000*
  • Reverse stitching
  • Safety clutch prevents the hook from being damaged
  • Compound feed assures even feeding of several plies or slippery material




  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • No matter how hard you press the foot pedal configured speed remains the same



    Number of Needles 1 (Single)
    Feeding Mechanism Needle Feed
    Workspace Standard Workspace
    Standard or Full Function Standard Functions
    Speed, Max (S.P.M.) 3000
    Clearance Under Presser Foot 11/32" (8.5mm)
    Stitch Length 5 s.p.i. (4.5mm)
    Work Space 10" (258mm)
    Needle 135 x 17
    Bobbin Pre-Wound G
    Bed Size 2 9/16" dia x 10 9/16" (65mm dia x 268mm)
    Stitch Type 301
    Needle Bar Stroke 1 5/16" (33mm)
    Hook 13086

    U.S. WARRANTY: 90 Days labor on defects in materials and workmanship.

    ** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary. Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience scratches during shipping. This will not affect the operation of the machine.
