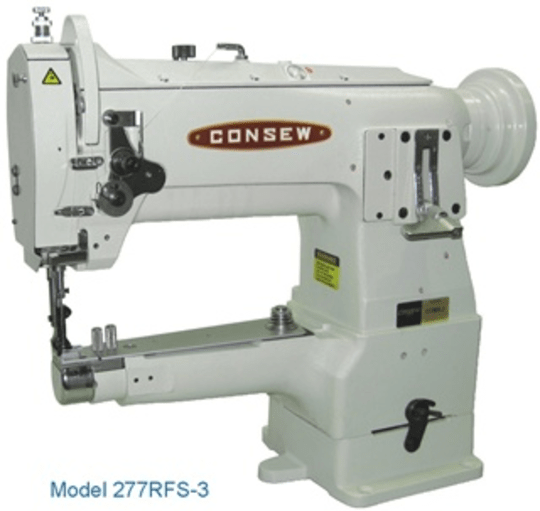

Consew Model 277RFS-3


Price:
Sale price$ 3,599.00

Description

APPLICATIONS

  • For sewing light to heavy-weight fabrics, leather, vinyl, upholstery, synthetics, canvas and various coated and laminated materials.
  • Especially designed for products with narrow openings.
  • For stitching tubular and curved work.
  • Suitable for sewing such products as hats, caps, shoes, sandals, slippers, tarpaulins, covers, sails, tents, awnings, umbrellas, bags, luggage, handbags, travelware accessories, wearing apparel, etc.
  • Models 277RFS-3 & 277RBFS-3 are especially made for Tape Binding

FEATURES

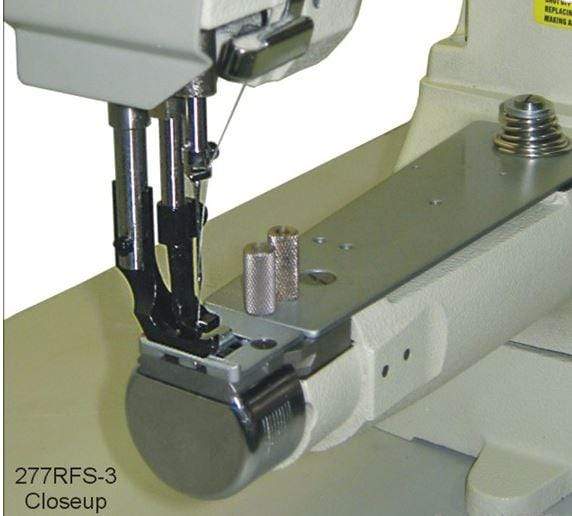

  • Narrow cylinder arm — 46 mm diameter (Model 277RFS-3)
  • Horizontal axis rotary hook
  • Large bobbin available (Model 277RBFS-3)
  • Compound feed, walking foot mechanism assures even feeding of several plies or slippery material
  • Simple adjustment permits the raising and lowering of center foot which allows for sewing of different thicknesses of materials

ADDITIONAL INFORMATION

U.S. WARRANTY: 90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary. Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.



Please review our Freight Shipping info

SPECIFICATIONS

Number of Needles 1 (Single)
Feeding Mechanism Walking Foot
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 2300
Stitch Length 4.2 s.p.i. 15/64" (6mm)
Work Space 10 5/32" x 4 11/32" (258 x 110mm)
Needle 135 x 17
Bobbin 17035 L
Needle Bar Stroke 1 5/16" (33.2mm)
Cylinder Diameter 1-13/16" Dia. (46mm)
